The UC2573DTR is a high-frequency device, and proper PCB layout is crucial. TI recommends a 4-layer PCB with a solid ground plane, and the use of vias to connect the top and bottom layers. Keep the input and output traces short and away from each other to minimize noise and coupling. Refer to TI's application notes and layout guidelines for more information.
The UC2573DTR requires low-ESR capacitors with high ripple current ratings. Choose capacitors with a voltage rating of at least 2x the input voltage, and a capacitance value that meets the recommended range (e.g., 10uF to 22uF). X5R or X7R ceramic capacitors are suitable for most applications. Consult the datasheet and TI's capacitor selection guide for more information.
The UC2573DTR has a maximum junction temperature (TJ) of 150°C. Assuming a thermal resistance (RθJA) of 30°C/W, the maximum ambient temperature (TA) for reliable operation is around 120°C. However, it's recommended to derate the device for long-term reliability and consider the specific application's thermal environment.
To minimize EMI emissions, use a shielded enclosure, and ensure the PCB layout follows good EMC practices. Add a common-mode choke or ferrite bead to the input and output lines, and use a snubber network to reduce ringing. Consult TI's EMC guidelines and application notes for more information.
The UC2573DTR has a recommended input voltage range of 12V to 24V. Operating outside this range may affect performance, efficiency, and reliability. If your application requires a different input voltage, consult TI's application notes and consider using a voltage regulator or other power conditioning components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2573DTR Overview

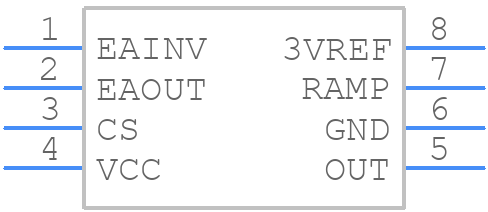

Use the download button to access the UC2573DTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC257,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
