Texas Instruments recommends a compact layout with the UC2573N placed close to the power source, and using a ground plane to reduce EMI. Additionally, it's recommended to use a shielded inductor and to keep the high-frequency nodes away from sensitive analog circuits.
To ensure stability, it's essential to follow the recommended component values and layout guidelines. Additionally, the UC2573N requires a minimum ESR (Equivalent Series Resistance) of 0.1 ohms for the output capacitor, and the output voltage should be decoupled with a capacitor to ground.
The UC2573N is rated for operation from -40°C to 85°C, but it's essential to consider the thermal derating of the device and the overall system design to ensure reliable operation over the desired temperature range.
Yes, the UC2573N is suitable for high-reliability and automotive applications, but it's essential to follow the recommended design and layout guidelines, and to consider the device's AEC-Q100 qualification and PPAP (Production Part Approval Process) documentation.
To troubleshoot issues with the UC2573N, start by verifying the input voltage, output voltage, and current sense resistor values. Check for proper component placement, soldering, and PCB layout. Use an oscilloscope to monitor the output voltage and current waveforms, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2573N Overview

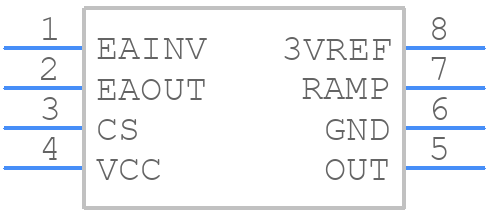

Use the download button to access the UC2573N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC257,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
