The UC2709DW is a high-frequency device and requires careful layout and placement to minimize noise and ensure proper operation. TI recommends placing the device close to the power supply, using short traces, and avoiding vias under the device. A solid ground plane and decoupling capacitors are also essential.
The output filter components (L and C) should be chosen based on the desired output voltage ripple, output current, and switching frequency. TI provides a filter design tool and application notes to help with component selection. Additionally, the datasheet provides guidelines for selecting the output filter components.
The UC2709DW is rated for operation up to 85°C ambient temperature. However, the device's junction temperature (TJ) should not exceed 150°C. The ambient temperature rating may be derated depending on the specific application and thermal design.
The UC2709DW is a commercial-grade device, but TI offers automotive-grade and high-reliability versions of the device, such as the UC2709DWQ or UC2709DWR, which meet specific industry standards and requirements. These devices have undergone additional testing and qualification for use in harsh environments.
TI provides a troubleshooting guide and application notes that cover common issues and their solutions. Additionally, engineers can use simulation tools, such as SPICE models, to analyze and debug their designs. It's also recommended to consult with TI's technical support team or a qualified engineer with experience in switch-mode power supply design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2709DW Overview

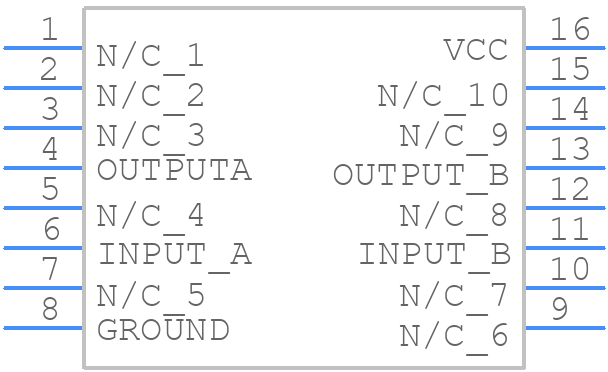

Use the download button to access the UC2709DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC270,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
