UC27133DG4 - Texas Instruments

Description: Power Switch ICs - Power Distribution Hi Side Smart Pwr Sw

Download UC27133DG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

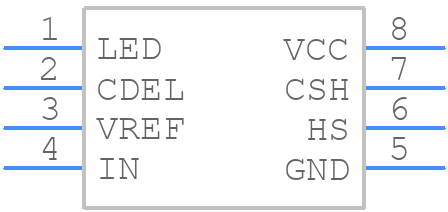

UC27133DG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UC27133DG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A SOIC
click to zoom
3D Models
UC27133DG4 - Texas Instruments - 3D model - Small Outline Packages - D0008A SOIC
click to zoom

UC27133DG4 Details

  • Manufacturer Part Number:

    UC27133DG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Built-in Protections:

    TRANSIENT; OVER CURRENT

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.89 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-EMITTER

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    0.25 A

  • Output Peak Current Limit-Nom:

    0.9 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Max:

    65 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    25 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    6 µs

  • Turn-on Time:

    6 µs

  • Width:

    3.9 mm
