UC2715DP - Texas Instruments

Description: Complementary Switch FET Drivers with Auxiliary Output

Download UC2715DP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

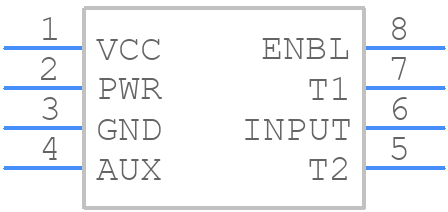

Symbol
UC2715DP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UC2715DP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
UC2715DP - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

UC2715DP Details

  • Manufacturer Part Number:

    UC2715DP

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Driver Number of Bits:

    2

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current-Max:

    0.2 A

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    24 mA

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    7 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.1 µs

  • Turn-on Time:

    0.1 µs

  • Width:

    3.9 mm

UC2715DP Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the high-frequency signals away from the low-frequency signals. Also, use a ferrite bead or a choke in series with the input power line to reduce EMI.
  • The UC2715DP has a thermal pad that must be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material and a heat sink if necessary. Also, keep the device away from other heat sources.
  • The maximum allowed voltage on the input pins of the UC2715DP is 6V, exceeding which can cause damage to the device. Ensure that the input voltage is within the recommended range to prevent damage.
  • Check the input voltage, output voltage, and current sense resistors for correct values and connections. Verify that the feedback loop is properly connected and that the compensation components are correct. Use an oscilloscope to check for oscillations and ringing.
  • The UC2715DP is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper design, testing, and validation. Ensure that the device is operated within its recommended specifications and that the PCB design meets the required standards.
