The UC2825DWG4 is a high-frequency device, so it's crucial to follow proper layout and placement guidelines to minimize noise and ensure optimal performance. TI recommends placing the device close to the power source, using a solid ground plane, and keeping the input and output traces short and separate.
The output inductor selection depends on the desired output voltage, current, and frequency. TI recommends using an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value. The datasheet provides a formula to calculate the minimum inductance value required.
The bootstrap capacitor (CB) is used to generate the high-side gate drive voltage for the internal power MOSFET. It's essential to choose a capacitor with a high voltage rating, low ESR, and a suitable capacitance value to ensure proper gate drive and minimize switching losses.
The switching frequency of the UC2825DWG4 can be adjusted by changing the value of the RT resistor connected to the RT pin. A lower RT resistor value increases the switching frequency, while a higher value decreases it. However, be cautious when adjusting the frequency, as it may affect the converter's efficiency and stability.
The UC2825DWG4 has a maximum input voltage rating of 28V. Exceeding this voltage may damage the device. It's essential to ensure that the input voltage remains within the recommended range to maintain the device's reliability and performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2825DWG4 Overview

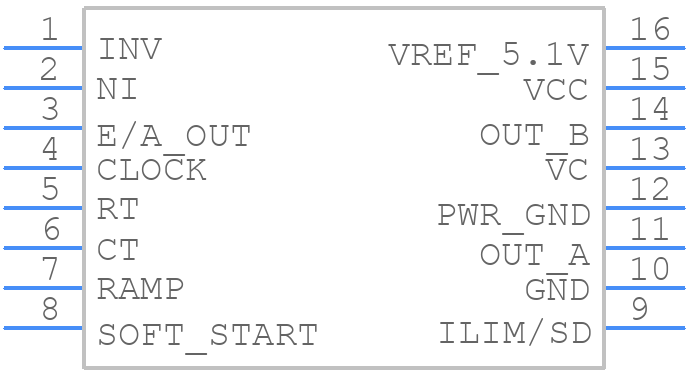

Use the download button to access the UC2825DWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC282,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
