The UC2825J is a high-frequency device, and proper layout and placement are crucial for its operation. TI recommends placing the device close to the power supply, using short traces, and minimizing loop areas to reduce EMI. A 4-layer PCB with a solid ground plane is recommended. Additionally, decoupling capacitors should be placed close to the device pins.
To ensure stability, the UC2825J requires a minimum of 10nF of capacitance between the VCC pin and ground. Additionally, the device should be decoupled from the power supply using a 10uF capacitor in parallel with a 10nF capacitor. The output voltage should also be filtered using a low-pass filter to prevent oscillations.
The UC2825J is capable of delivering up to 5A of output current, but this is dependent on the input voltage, output voltage, and thermal considerations. The device should be operated within its recommended operating conditions to ensure reliable operation.
The UC2825J has a programmable output voltage, which can be set using an external resistor divider network between the VOUT pin and the GND pin. The output voltage can be calculated using the formula: VOUT = 2.5V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
The UC2825J has a thermal derating of 12.5mW/°C above 25°C. This means that the device's power dissipation should be reduced as the temperature increases to prevent overheating and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2825J Overview

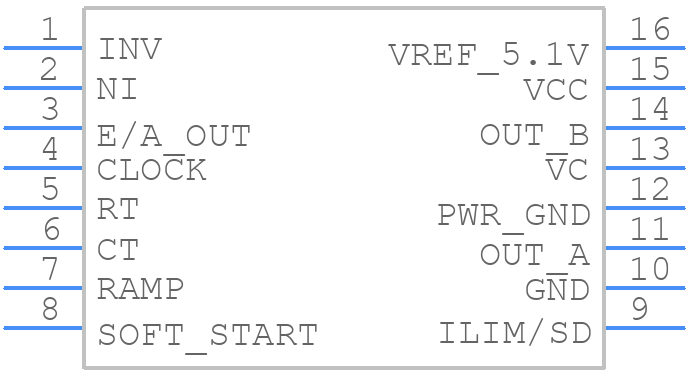

Use the download button to access the UC2825J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC282,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
