UC2833DW - Texas Instruments

Description: Precision Low Dropout Linear Controllers

Download UC2833DW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

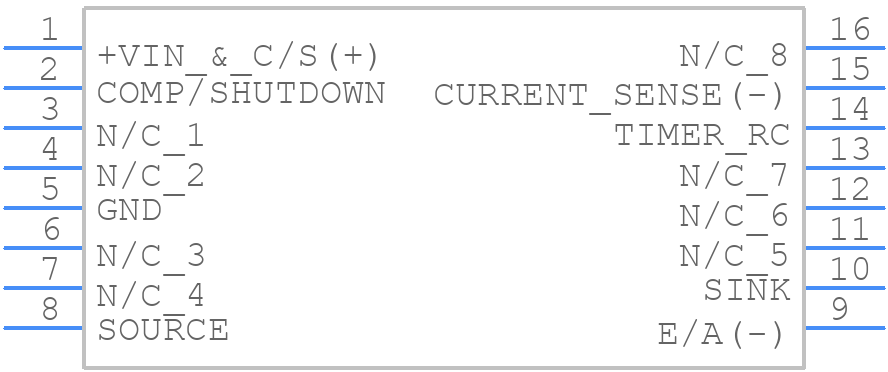

Symbol
UC2833DW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UC2833DW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016A
click to zoom
3D Models
UC2833DW - Texas Instruments - 3D model - Small Outline Packages - DW0016A
click to zoom

UC2833DW Details

  • Manufacturer Part Number:

    UC2833DW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    UNDER AND OVER-VOLTAGE FAULT ALERT WITH PROGRAMMABLE DELAY

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.45 A

  • Output Voltage-Max:

    35 V

  • Output Voltage-Min:

    2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Width:

    7.5 mm

UC2833DW Frequently Asked Questions (FAQs)

  • The UC2833DW requires careful layout and placement to ensure proper operation. TI recommends placing the IC close to the input capacitors, using short and wide traces for the power lines, and separating the analog and digital grounds. A 4-layer PCB with a solid ground plane is also recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 10uF to 22uF, and the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value between 10uF to 47uF. The capacitor selection also depends on the output voltage and current requirements.
  • The UC2833DW can operate in an ambient temperature range of -40°C to 85°C, but the junction temperature should not exceed 125°C. Proper thermal design and heat sinking are necessary to ensure reliable operation.
  • The output voltage of the UC2833DW can be adjusted by changing the resistive divider ratio of the feedback resistors (R1 and R2). The output voltage can be calculated using the formula: Vout = 1.25V x (1 + R2/R1).
  • The EN (enable) pin is used to turn the regulator on or off. When the EN pin is pulled high, the regulator is enabled, and when it is pulled low, the regulator is disabled. This pin can be used to implement power sequencing or to reduce power consumption in standby mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UC2833DW Overview

Use the download button to access the UC2833DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC283, or try a keyword search, such as Other Signal Circuits
