UC2841N - Texas Instruments

Description: Programmable, Off-Line, PWM Controller

Download UC2841N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

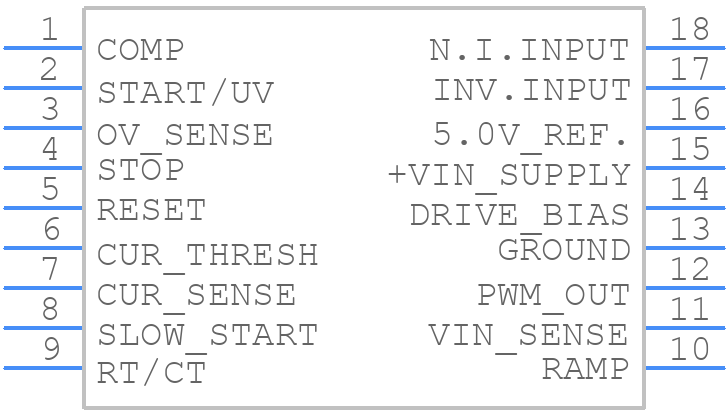

UC2841N - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UC2841N - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N(R-PDIP-T18)
click to zoom
3D Models
UC2841N - Texas Instruments - 3D model - Dual-In-Line Packages - N(R-PDIP-T18)
click to zoom

UC2841N Details

  • Manufacturer Part Number:

    UC2841N

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Pin Count:

    18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    CURRENT MODE OPERATION IS ALSO POSSIBLE

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    32 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    20 V

  • JESD-30 Code:

    R-PDIP-T18

  • JESD-609 Code:

    e4

  • Length:

    22.48 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    14 mA

  • Supply Voltage-Max (Vsup):

    32 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

UC2841N Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for UC2841N is 100 kHz to 500 kHz. However, it can operate up to 1 MHz with some performance degradation.
  • The value of CT depends on the desired oscillator frequency and the values of RT and RB. A good starting point is to use the formula: CT = (RT * RB) / (1.44 * fosc), where fosc is the desired oscillator frequency.
  • The soft-start pin (SS) is used to slowly ramp up the output voltage during startup, reducing inrush current and stress on the power supply. To use it, connect a capacitor from SS to ground and a resistor from SS to VCC. The capacitor value determines the soft-start time.
  • To ensure stability, make sure the oscillator circuit is properly biased, the timing capacitor (CT) is correctly sized, and the feedback loop is stable. Also, check for proper decoupling of the power supply and ensure that the output voltage is within the recommended range.
  • Yes, the UC2841N can be used in a push-pull configuration. To do so, connect the outputs of two UC2841N devices in a push-pull configuration, with the outputs connected to the primary winding of a transformer. This configuration can improve efficiency and reduce EMI.
