The UC2842AD8G4 is a high-frequency switching regulator, and as such, it requires careful PCB design and layout to minimize noise and ensure reliable operation. TI recommends using a multi-layer PCB with a solid ground plane, keeping the switching node (pin 5) as short as possible, and using a Kelvin connection for the output voltage sense. Additionally, it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, and using a common ground point for the input and output returns.
The choice of external components for the UC2842AD8G4 depends on the specific application requirements, such as output voltage, current, and switching frequency. TI provides a detailed application note (SLUA121) that provides guidance on selecting the right inductor and output capacitor. In general, the inductor should be chosen based on the desired output current, and the output capacitor should be selected based on the output voltage ripple and transient response requirements.
The UC2842AD8G4 has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure that the device is properly heatsinked and that the thermal design is adequate to prevent overheating, especially in high-power applications.
Troubleshooting issues with the UC2842AD8G4 often requires a systematic approach. TI recommends checking the PCB layout and design, ensuring that the input and output capacitors are properly selected and placed, and verifying that the feedback loop is properly compensated. Additionally, using an oscilloscope to monitor the switching node and output voltage can help identify issues such as oscillations or instability. TI also provides a detailed troubleshooting guide (SLUA122) that provides more detailed guidance on identifying and resolving common issues.
Yes, the UC2842AD8G4 can be used in a synchronous rectification configuration, which can improve efficiency and reduce power losses. However, this requires additional external components, such as a synchronous rectifier FET and a driver IC. TI provides a detailed application note (SLUA123) that provides guidance on designing a synchronous rectification circuit using the UC2842AD8G4.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2842AD8G4 Overview

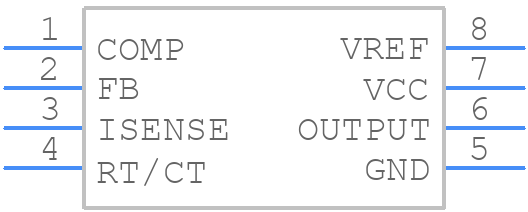

Use the download button to access the UC2842AD8G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC284,
or try a keyword search, such as Switching Regulator or Controllers
