The UC2842AQDR is a high-frequency switching regulator, and as such, it requires careful PCB design and layout to minimize noise, EMI, and parasitic inductance. TI recommends using a 4-layer PCB with a solid ground plane, separating the high-current and high-frequency nodes, and using short, wide traces for the power lines. Additionally, it's essential to follow the recommended component placement and orientation to minimize radiated emissions.
Choosing the right inductor for the UC2842AQDR involves considering factors such as inductance value, saturation current, and core material. TI recommends using an inductor with an inductance value between 1.5uH and 3.3uH, and a saturation current rating of at least 2A. The core material should be a low-loss material such as ferrite or powdered iron. Additionally, the inductor should be designed to minimize radiated emissions and core losses.
The UC2842AQDR has an absolute maximum input voltage rating of 18V. However, the recommended operating input voltage range is 12V to 15V. Exceeding the maximum input voltage can cause damage to the device or affect its performance.
The UC2842AQDR's voltage feedback loop requires compensation to ensure stability and prevent oscillations. TI recommends using a Type II compensation network, which consists of a series resistor and capacitor connected between the VFB pin and the output voltage. The values of the resistor and capacitor can be calculated using the equations provided in the datasheet or by using TI's online compensation tool.
The UC2842AQDR has a built-in soft-start feature that limits the inrush current during startup. The soft-start time is approximately 1.5ms. The soft-start time can be adjusted by adding an external capacitor between the SS pin and ground. The value of the capacitor determines the soft-start time, with larger values resulting in longer soft-start times.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2842AQDR Overview

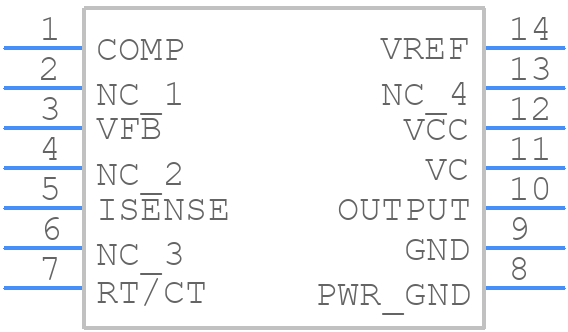

Use the download button to access the UC2842AQDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC284,
or try a keyword search, such as Switching Regulator or Controllers
