The UC2842DTR is a high-frequency switching regulator, and as such, it requires careful PCB design and layout to minimize noise, EMI, and parasitic inductance. TI recommends using a 4-layer PCB with a solid ground plane, separating the high-current and high-frequency nodes, and using short, wide traces for the power lines. Additionally, it's essential to follow the recommended component placement and orientation to minimize radiated emissions.
Choosing the right output inductor involves considering factors such as inductance value, saturation current, and core material. TI recommends using an inductor with an inductance value between 1-10 μH, a saturation current rating above the peak output current, and a core material with low core loss (e.g., ferrite or powdered iron). Additionally, consider the inductor's physical size, shape, and shielding to minimize EMI.
While the datasheet specifies a maximum input voltage of 18V, the UC2842DTR can actually handle higher input voltages with proper design considerations. However, it's essential to ensure that the input voltage does not exceed 25V to prevent damage to the internal voltage regulator. Additionally, consider the voltage rating of the input capacitor and other components in the design.
To optimize the UC2842DTR for low standby power consumption, TI recommends using a low-quiescent-current (Iq) design, disabling the output stage during shutdown, and using a low-voltage, low-current startup circuit. Additionally, consider using a low-power mode or sleep mode to reduce power consumption during periods of inactivity.
The UC2842DTR has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation at high temperatures, TI recommends using a heat sink or thermal pad to dissipate heat, keeping the device away from heat sources, and using a thermally conductive PCB material. Additionally, consider derating the output current and voltage to reduce power dissipation and thermal stress.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2842DTR Overview

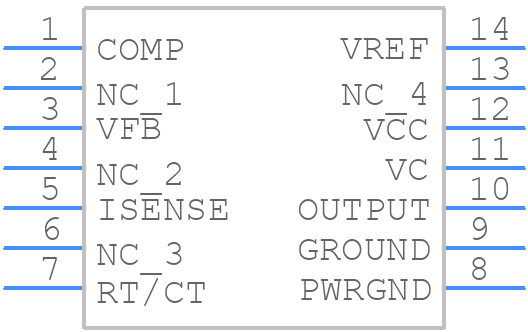

Use the download button to access the UC2842DTR schematic symbol, PCB footprint, and 3D model.
