UC2844BD1 - STMicroelectronics

Description: High performance current mode PWM controller

Download UC2844BD1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

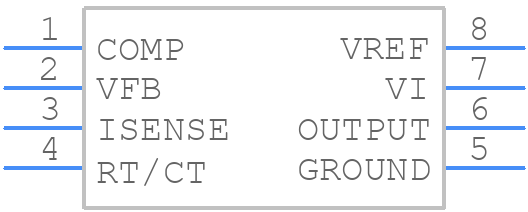

Symbol
UC2844BD1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
UC2844BD1 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - 8 PINS - PLASTIC MICROPACKAGE (SO)
click to zoom
3D Models
UC2844BD1 - STMicroelectronics - 3D model - Small Outline Packages - 8 PINS - PLASTIC MICROPACKAGE (SO)
click to zoom

UC2844BD1 Details

  • Manufacturer Part Number:

    UC2844BD1

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SO-8

  • Pin Count:

    8

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    11 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

UC2844BD1 Frequently Asked Questions (FAQs)

  • The UC2844BD1 is a high-frequency switching converter, so a good PCB layout is crucial. Keep the power stage components close together, use a solid ground plane, and minimize trace lengths. Use a 4-layer PCB with a dedicated power plane and a separate ground plane. Keep the feedback trace away from the power stage and use a shielded cable for the feedback signal.
  • Choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value. The inductance value depends on the output voltage, output current, and switching frequency. A good starting point is to use the inductor value calculation formula provided in the datasheet. Consider using a shielded inductor to reduce EMI.
  • The UC2844BD1 has an operating junction temperature range of -40°C to 150°C. However, the maximum ambient temperature range depends on the specific application and the thermal design. A good thermal design should ensure that the junction temperature stays within the recommended range. Consider using a heat sink or a thermally enhanced package.
  • To ensure stability, follow the compensation network design guidelines in the datasheet. Choose the right compensation components (R1, R2, C1, and C2) based on the output voltage and current. Use a type-III compensation network for most applications. Verify the stability by checking the loop gain and phase margin using a Bode plot or a network analyzer.
  • Use a common-mode choke and a differential-mode filter to reduce EMI. Add a shielded inductor and a shielded transformer (if used) to reduce radiated emissions. Use a metal enclosure and ensure good grounding and shielding of the PCB. Follow the CISPR 22 and EN 55022 standards for EMI compliance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
