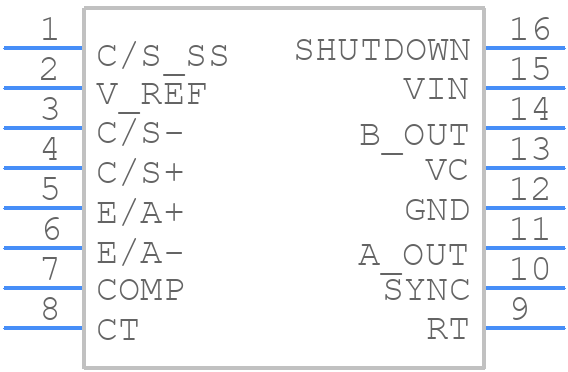

UC2846J - Texas Instruments

UC2846J Details

• Manufacturer Part Number:

  UC2846J

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  DIP

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  CURRENT-MODE

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  40 V

• Input Voltage-Min:

  7.25 V

• Input Voltage-Nom:

  15 V

• JESD-30 Code:

  R-GDIP-T16

• JESD-609 Code:

  e0

• Length:

  19.56 mm

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.5 A

• Output Voltage-Max:

  5.15 V

• Output Voltage-Min:

  5.05 V

• Output Voltage-Nom:

  5.1 V

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Supply Current-Max (Isup):

  21 mA

• Supply Voltage-Max (Vsup):

  40 V

• Supply Voltage-Min (Vsup):

  7.7 V

• Surface Mount:

  NO

• Switcher Configuration:

  BUCK-BOOST

• Switching Frequency-Max:

  500 kHz

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
