The UC2852DTR is a high-frequency device, and proper layout and placement are crucial to minimize EMI. TI recommends placing the device close to the input capacitors, using a solid ground plane, and keeping the high-frequency traces short and away from sensitive analog signals. Additionally, a shielded enclosure or a metal can package can help reduce EMI emissions.
To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. Also, check that the feedback loop is properly compensated, and the gain and phase margins are sufficient. If oscillations occur, try adding a small capacitor (e.g., 10nF) between the VCC pin and ground to improve stability.
The UC2852DTR has an operating temperature range of -40°C to 85°C. However, the maximum ambient temperature depends on the specific application and the device's power dissipation. As a general rule, ensure that the junction temperature (TJ) does not exceed 150°C. Use the thermal resistance (RθJA) and power dissipation (PD) to calculate the maximum ambient temperature for your specific application.
The UC2852DTR is a commercial-grade device, and its reliability and performance may not meet the requirements of high-reliability or aerospace applications. TI offers other devices, such as the UC2852QML, which are specifically designed and qualified for high-reliability and aerospace applications. These devices undergo additional testing and screening to ensure their performance and reliability in harsh environments.
To troubleshoot issues with the UC2852DTR, start by verifying the input voltage, output voltage, and current. Check the device's pin voltages and waveforms using an oscilloscope. Ensure that the input and output capacitors are properly connected and of sufficient value. Also, check the feedback loop and compensation components. If the issue persists, try replacing the device or consulting the TI support resources, such as the datasheet, application notes, and online forums.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2852DTR Overview

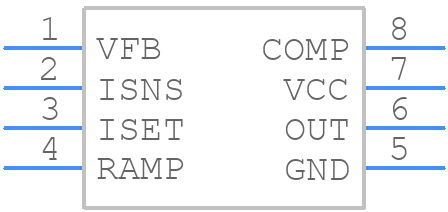

Use the download button to access the UC2852DTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC285,
or try a keyword search, such as Switching Regulator or Controllers
