Texas Instruments recommends a compact layout with the controller, power FETs, and output capacitors placed close together. The input and output stages should be separated to minimize noise coupling. A solid ground plane and a low-impedance power supply connection are also recommended.
The choice of external components depends on the specific application requirements, such as output voltage, current, and frequency. Texas Instruments provides a design guide and calculator tool to help select the optimal components. Additionally, the datasheet provides guidelines for component selection and calculation.
The UC2853DTR has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to follow the thermal design guidelines and ensure proper heat sinking to maintain a safe operating temperature.
The UC2853DTR has a built-in overcurrent protection feature that can be enabled by connecting a sense resistor to the CS pin. The device will shut down if the current exceeds the programmed threshold. Additional external circuitry can be added to enhance the overcurrent protection, such as a current sense amplifier and a comparator.
Yes, the UC2853DTR can be used in a synchronous rectification configuration. The device's output stage can be configured to operate in a synchronous rectification mode, which can improve efficiency and reduce power losses. However, this requires additional external circuitry and careful design consideration.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2853DTR Overview

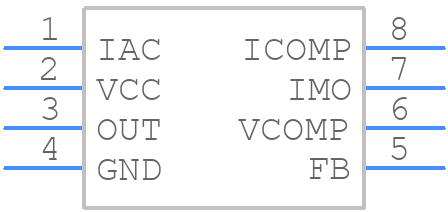

Use the download button to access the UC2853DTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC285,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
