UC2854BDW - Texas Instruments

Description: Texas Instruments UC2854BDW, Power Factor Pre-Regulator Circuit, 115 kHz, 10 → 20 V, 16-Pin SOIC

Download UC2854BDW Model

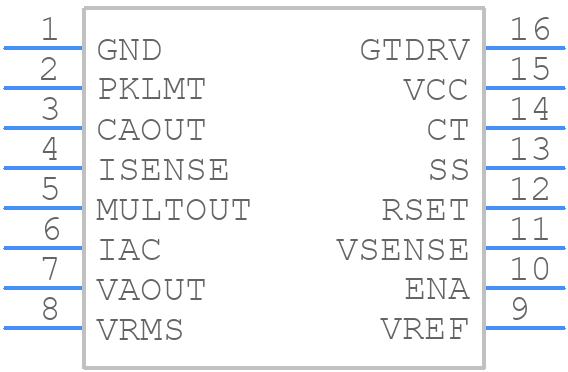

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UC2854BDW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G16)
click to zoom
3D Models
UC2854BDW - Texas Instruments  - 3D model - Small Outline Packages - DW (R-PDSO-G16)
click to zoom

UC2854BDW Details

  • Manufacturer Part Number:

    UC2854BDW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    1992-12-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    18 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    7.6 V

  • Output Voltage-Min:

    7.4 V

  • Output Voltage-Nom:

    7.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    12 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Nom (Vsup):

    18 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    200 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

UC2854BDW Frequently Asked Questions (FAQs)

  • The UC2854BDW is a high-frequency device, and proper layout and placement are crucial to minimize EMI and noise. TI recommends a 4-layer PCB with a solid ground plane, and placing the device close to the input capacitors and output inductors. Additionally, keep the high-frequency nodes (e.g., pin 1 and pin 8) away from the low-frequency nodes (e.g., pin 5 and pin 6).
  • The input capacitor (Cin) should be a low-ESR ceramic capacitor with a value between 10uF to 22uF. The output capacitor (Cout) should be a low-ESR electrolytic capacitor with a value between 22uF to 47uF. The capacitor values and types should be chosen based on the specific application requirements, such as input voltage, output voltage, and output current.
  • The UC2854BDW can handle a maximum output current of 4A. However, the actual output current capability may be limited by the external components, such as the output inductor and capacitor, as well as the thermal design of the PCB.
  • The UC2854BDW requires a compensation network to ensure stability. A type-II compensation network is recommended, consisting of a resistor (Rcomp) and a capacitor (Ccomp) connected between the COMP pin and GND. The values of Rcomp and Ccomp depend on the specific application requirements, such as the output voltage and output current.
  • The EN (enable) pin is used to enable or disable the UC2854BDW. When the EN pin is high, the device is enabled, and when it is low, the device is disabled. The EN pin can be connected to a logic signal or a voltage source to control the device's operation.
