Texas Instruments recommends a compact layout with the controller, power FETs, and output diode placed close together. The input and output capacitors should be placed near the controller, and the power FETs should be placed near the output diode. A solid ground plane and a separate layer for the high-current paths can help reduce EMI.
The transformer selection depends on the output power, voltage, and current requirements. The transformer's turns ratio, inductance, and core material should be chosen to ensure the desired output voltage and current. Texas Instruments provides a transformer design guide and a list of recommended transformers in the UC2854BQ datasheet.
The maximum duty cycle of the UC2854BQ is 50%. Exceeding this limit can cause the controller to malfunction or overheat. The duty cycle affects the design by determining the maximum on-time of the power FETs, which in turn affects the transformer design, output voltage, and current.
The UC2854BQ has a built-in voltage reference, but it can be affected by the input voltage and temperature. To ensure accurate output voltage regulation, a voltage compensation network can be added to the feedback loop. This network typically consists of resistors and capacitors that compensate for the voltage drop and temperature drift.
The UC2854BQ has a maximum junction temperature of 150°C. To ensure reliable operation, the device should be mounted on a heat sink with a thermal resistance of less than 10°C/W. The heat sink should be designed to dissipate the maximum power loss, which depends on the input voltage, output power, and efficiency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2854BQ Overview

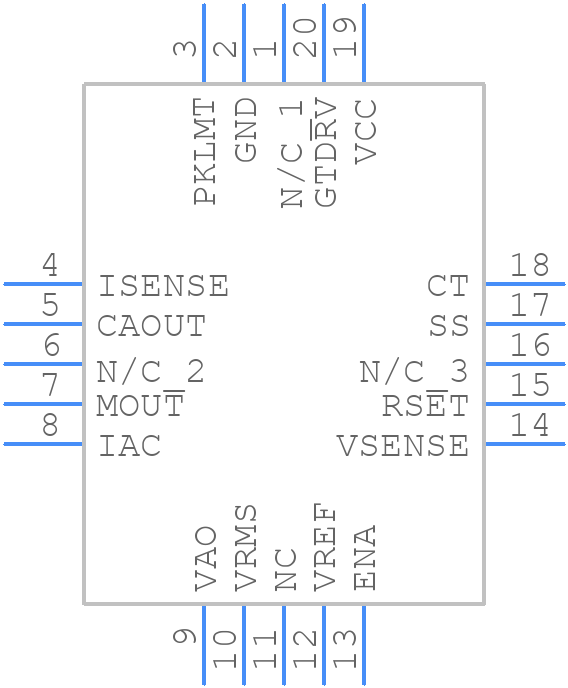

Use the download button to access the UC2854BQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC285,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
