The UC2855BDW is a high-frequency switching converter, and proper layout and placement are crucial for its operation. TI recommends a 4-layer PCB with a solid ground plane, and placing the IC close to the input capacitors and inductors to minimize noise and EMI.
The inductor selection depends on the output current, switching frequency, and desired ripple current. TI recommends using an inductor with a high saturation current, low DCR, and a suitable core material. The datasheet provides a list of recommended inductors, but it's essential to verify the inductor's performance in the specific application.
The UC2855BDW has a maximum ambient temperature rating of 85°C, but the junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Yes, the UC2855BDW can be used in a synchronous rectification configuration, which can improve efficiency and reduce power losses. However, this requires additional components and careful design to ensure proper operation and minimize shoot-through currents.
Oscillations or instability issues can be caused by various factors, including layout, component selection, and design flaws. TI recommends checking the PCB layout, component values, and design calculations to ensure they meet the datasheet recommendations. Additionally, using simulation tools and scope measurements can help identify and troubleshoot the issue.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UC2855BDW Overview

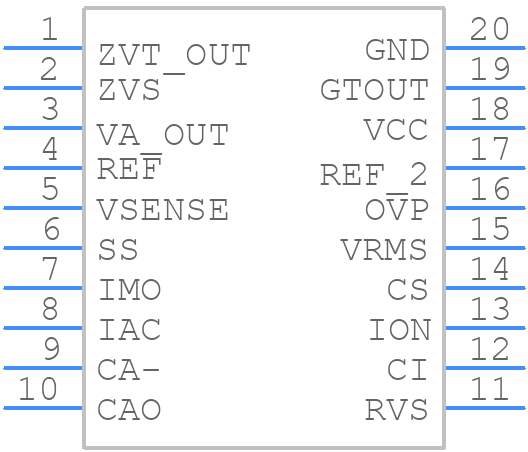

Use the download button to access the UC2855BDW schematic symbol, PCB footprint, and 3D model.
