The UC2855BDWTR is a high-frequency switching regulator, and proper layout and placement are crucial for its operation. TI recommends a compact, symmetrical layout with minimal trace lengths and widths. Place the input and output capacitors close to the IC, and use a solid ground plane to reduce noise and EMI.
The inductor selection depends on the output voltage, current, and switching frequency. TI recommends using an inductor with a high saturation current, low DC resistance, and a suitable inductance value. The datasheet provides a formula to calculate the inductance value based on the output voltage and current.
The maximum junction temperature for the UC2855BDWTR is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to prevent thermal shutdown.
The UC2855BDWTR is rated for operation up to 85°C ambient temperature. For high-temperature applications, TI recommends using the UC2855BDWTRG, which is rated for operation up to 125°C ambient temperature.
Oscillations or instability issues can be caused by poor layout, inadequate decoupling, or incorrect component selection. Check the layout for noise coupling, ensure proper decoupling of the input and output, and verify that the component values meet the recommended specifications. Use an oscilloscope to measure the output voltage and current waveforms to identify the source of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2855BDWTR Overview

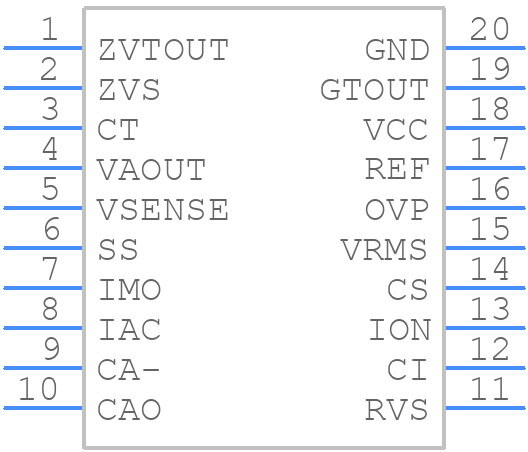

Use the download button to access the UC2855BDWTR schematic symbol, PCB footprint, and 3D model.
