The UC2855BN is a high-frequency device, and proper layout and placement are crucial to minimize EMI and noise. TI recommends placing the device close to the power source, using a solid ground plane, and keeping the input and output traces short and separate. Additionally, using a shielded inductor and placing it close to the device can help reduce EMI.
Optimizing the compensation network for the UC2855BN involves selecting the right values for the compensation components (R1, R2, C1, and C2). TI recommends using the provided compensation network calculation tool or following the guidelines in the datasheet to determine the optimal values. Additionally, the compensation network should be adjusted based on the specific application and operating conditions.
The UC2855BN's output stage can withstand a maximum voltage stress of 35V. Exceeding this voltage can cause damage to the device. It's essential to ensure that the output voltage does not exceed this limit, especially during startup, shutdown, or fault conditions.
To ensure reliable startup and shutdown of the UC2855BN, TI recommends using a soft-start circuit to limit the inrush current and prevent voltage spikes. Additionally, a proper shutdown sequence should be implemented to prevent damage to the device and ensure a safe shutdown.
The UC2855BN has a maximum junction temperature of 150°C. To ensure proper heat sinking, TI recommends using a heat sink with a thermal resistance of less than 10°C/W. The device should be mounted on a PCB with a solid ground plane, and thermal vias should be used to dissipate heat. Additionally, the device should be placed in a well-ventilated area to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2855BN Overview

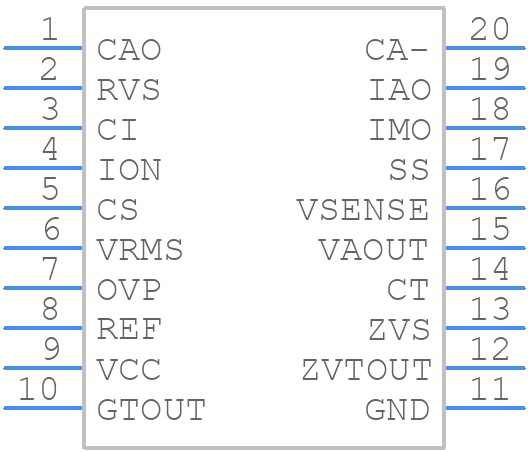

Use the download button to access the UC2855BN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC285,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
