A good PCB layout for the UC2856QDWR involves keeping the input and output stages separate, using a star-ground configuration, and placing the input and output capacitors close to the IC. Additionally, using a ground plane and shielding can help reduce EMI.
The choice of input and output capacitors for the UC2856QDWR depends on the specific application requirements. Generally, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF.
The UC2856QDWR has an operating temperature range of -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and the thermal design of the system.
To ensure stability, the UC2856QDWR requires a minimum output capacitance of 22uF, and the output voltage should be decoupled with a capacitor of at least 10nF. Additionally, the input voltage should be well-regulated, and the PCB layout should be designed to minimize parasitic inductance and capacitance.
Yes, the UC2856QDWR is a high-reliability device that is suitable for use in aerospace, defense, and other high-reliability applications. However, it is essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2856QDWR Overview

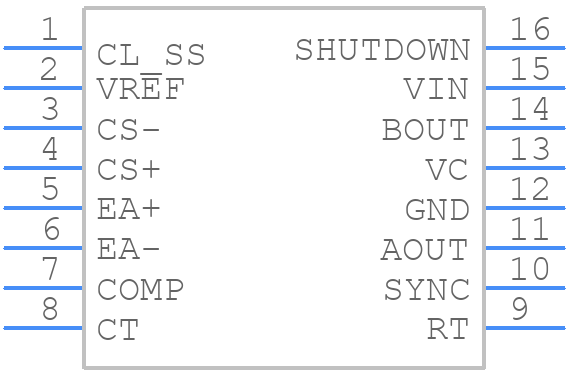

Use the download button to access the UC2856QDWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC285,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
