The UC2871DW is a high-frequency device, and proper layout and placement are crucial for its operation. TI recommends placing the device close to the power source, using a solid ground plane, and keeping the high-frequency traces short and away from sensitive analog signals. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, adding a small resistor (e.g., 10 ohms) in series with the output capacitor can help dampen oscillations.
The UC2871DW can deliver up to 1.5A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. It's essential to check the thermal derating curves in the datasheet to ensure the device can handle the required output current.
Yes, the UC2871DW can be used in a synchronous rectification topology. However, it's essential to ensure that the device is properly configured and that the synchronous rectifier is properly sized and controlled to avoid shoot-through currents and other issues.
To troubleshoot issues with the UC2871DW, start by checking the input and output voltages, as well as the current sense resistor voltage. Use an oscilloscope to check for oscillations or ringing on the output. Also, verify that the component values and layout meet the recommended guidelines. If issues persist, consult the TI application notes and technical support resources.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2871DW Overview

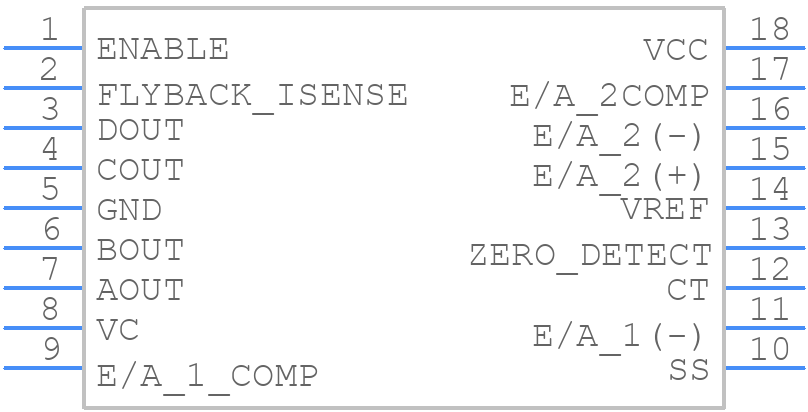

Use the download button to access the UC2871DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC287,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
