Texas Instruments provides a detailed application note (SLUA271) that covers PCB layout guidelines, including component placement, trace routing, and thermal management. It's essential to follow these guidelines to ensure proper operation and minimize electromagnetic interference (EMI).
The datasheet provides general guidelines for capacitor selection, but it's crucial to consider factors like capacitor type, value, and ESR (Equivalent Series Resistance) based on the specific application. TI's Capacitor Selection Guide (SLUA369) and the UC2874DW-2's application notes can help with this selection process.
The UC2874DW-2 has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and consider derating the device's specifications at high temperatures.
TI provides a troubleshooting guide (SLUA273) that covers common issues, such as startup problems, oscillations, and output voltage regulation. Additionally, using an oscilloscope to monitor the device's pins and signals can help identify and debug issues.
The UC2874DW-2 is a commercial-grade device, but TI offers a radiation-hardened version, the UC2874RH, which is designed for high-reliability and aerospace applications. It's essential to evaluate the specific requirements of your application and choose the appropriate device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2874DW-2 Overview

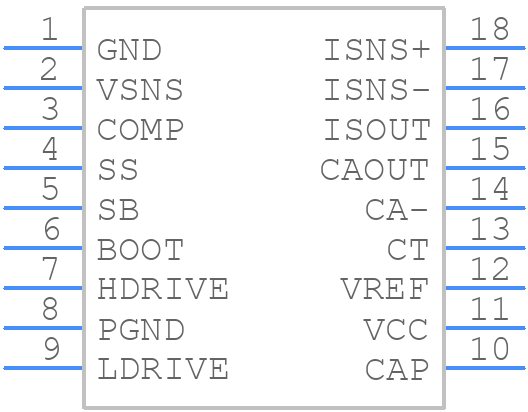

Use the download button to access the UC2874DW-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC287,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
