TI provides a recommended layout and PCB design guide in the UC2875 application note (SLUA271). It's essential to follow the guidelines for component placement, trace routing, and thermal management to ensure optimal performance, low EMI, and high reliability.
The UC2875 datasheet provides a transformer selection guide, but it's crucial to consider factors like core material, turns ratio, and leakage inductance. TI's Transformer Design Tool (TDT) can help you design and select a suitable transformer for your specific application.
Proper input and output filtering is critical to reduce EMI and ensure reliable operation. The UC2875 datasheet provides guidance on filter component selection and placement. Additionally, TI's EMI reduction techniques application note (SLUA281) offers valuable insights and design tips.
The UC2875 has built-in overcurrent protection, but you may need to add external circuitry for fault detection and protection. TI's application notes (SLUA272 and SLUA273) provide examples and guidelines for implementing overcurrent protection and fault detection in your design.
The UC2875 is a high-power device, and thermal management is crucial to ensure reliability and prevent overheating. TI recommends using a heat sink, thermal interface material, and proper PCB design to dissipate heat effectively. The UC2875 thermal design guide (SLUA274) provides detailed information and guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2875SDWREP Overview

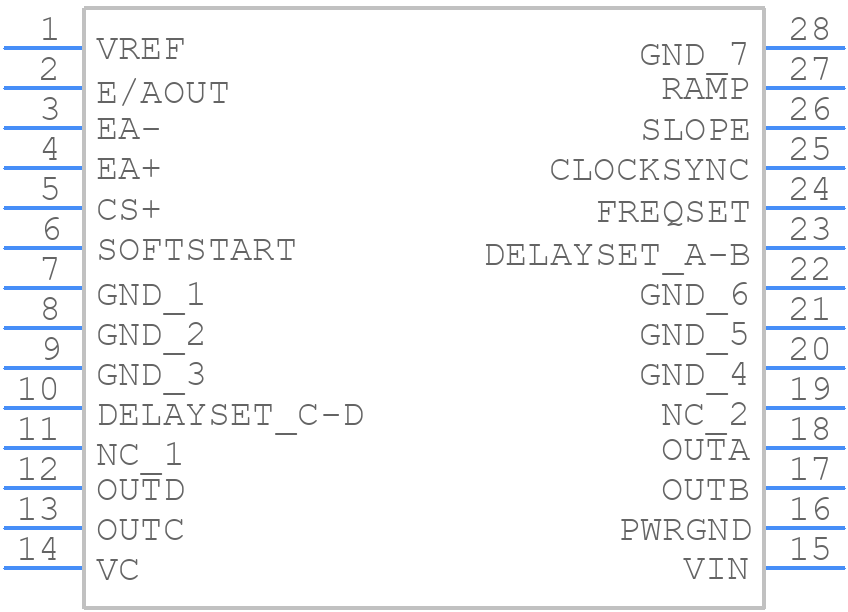

Use the download button to access the UC2875SDWREP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC287,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
