The UC3524ADW is a high-frequency device, and proper layout and placement are crucial. TI recommends keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and loops. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and layout guidelines. Also, ensure that the output voltage is within the specified range, and the input voltage is within the recommended operating range. Additionally, adding a small capacitor (e.g., 10nF) between the COMP pin and GND can help improve stability.
The UC3524ADW can deliver up to 1A of output current, but this is dependent on the input voltage, output voltage, and thermal considerations. Be sure to check the thermal derating curves in the datasheet to ensure the device can handle the required output current.
Yes, the UC3524ADW can be used in a synchronous rectification topology. However, additional external circuitry is required to implement the synchronous rectification function. TI provides application notes and reference designs to help with this implementation.
The switching frequency of the UC3524ADW can be adjusted by changing the value of the RT resistor connected between the RT pin and GND. A smaller RT resistor value increases the switching frequency, while a larger value decreases it. However, be careful not to exceed the maximum recommended switching frequency to avoid instability and EMI issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3524ADW Overview

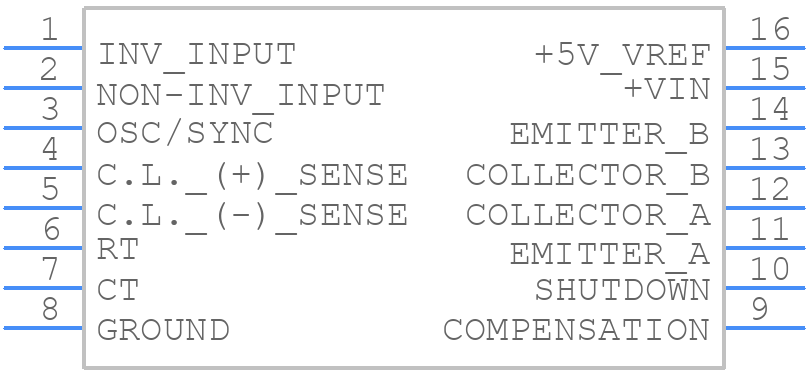

Use the download button to access the UC3524ADW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC352,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
