The UC3524ADWTR is a high-frequency switching regulator, and as such, proper PCB layout and design are crucial for optimal performance. TI recommends a multi-layer PCB with a solid ground plane, and careful placement of components to minimize noise and EMI. A good rule of thumb is to keep the switching node (pins 1-3) away from sensitive analog circuits, and to use a shielded inductor to reduce EMI.
Choosing the right inductor for the UC3524ADWTR involves considering factors such as inductance value, current rating, and core material. TI recommends using an inductor with a high saturation current rating, low DC resistance, and a core material with low core loss. A good starting point is to use an inductor with an inductance value between 10-22uH, and a current rating of at least 1.5 times the maximum output current.
The UC3524ADWTR is capable of delivering up to 3A of output current, but this is dependent on the input voltage, output voltage, and inductor selection. TI recommends derating the output current based on the specific application requirements and thermal considerations.
The UC3524ADWTR requires compensation to ensure stability and optimal performance. TI recommends using a Type II compensation network, which consists of a series resistor and capacitor connected between the COMP pin and GND. The values of these components depend on the specific application requirements and can be calculated using TI's compensation calculator tool.
The UC3524ADWTR is a high-power device that can generate significant heat during operation. TI recommends providing adequate heat sinking and thermal management to ensure reliable operation. This includes using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good airflow around the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3524ADWTR Overview

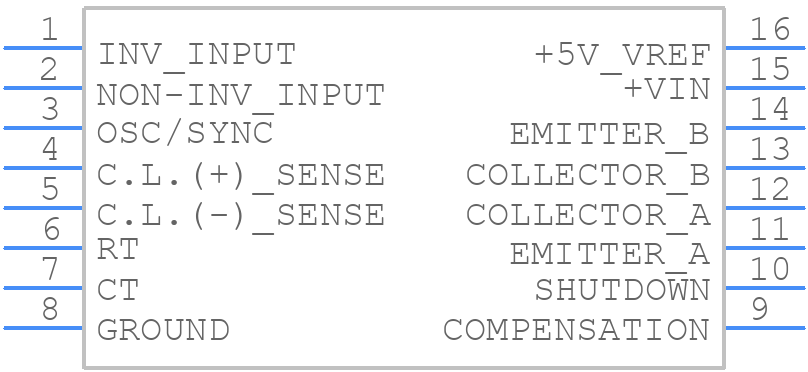

Use the download button to access the UC3524ADWTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC352,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
