The UC3524ANG4 is a high-frequency switching regulator, and proper PCB layout is crucial for its operation. TI recommends a 4-layer PCB with a solid ground plane, and the use of vias to connect the top and bottom layers. The input and output capacitors should be placed close to the IC, and the feedback network should be routed away from the switching node. A detailed layout guide can be found in the TI application note SLUA121.
The inductor selection depends on the output voltage, current, and switching frequency. TI recommends using an inductor with a low DC resistance, high saturation current, and a suitable inductance value. A good starting point is to use an inductor with an inductance value between 10uH to 22uH, and a saturation current rating of at least 1.5 times the maximum output current. The TI Webench tool can be used to simulate and select the optimal inductor.
The maximum junction temperature of the UC3524ANG4 is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to ensure a long lifespan. The thermal resistance of the package is 30°C/W, and the device can dissipate up to 2.5W of power.
Yes, the UC3524ANG4 can be used in a synchronous rectification configuration to improve efficiency. However, this requires additional external components, such as a synchronous rectifier FET and a Schottky diode. The UC3524ANG4 has a built-in driver for the synchronous rectifier FET, and the device can be configured to operate in synchronous rectification mode by connecting the SYNC pin to the output voltage.
Oscillations or instability issues with the UC3524ANG4 can be caused by a variety of factors, including poor PCB layout, inadequate decoupling, or incorrect component selection. To troubleshoot these issues, start by checking the PCB layout and ensuring that the input and output capacitors are properly decoupled. Verify that the inductor is properly selected and that the feedback network is correctly configured. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or ringing. If the issue persists, consult the TI application notes and technical support resources for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3524ANG4 Overview

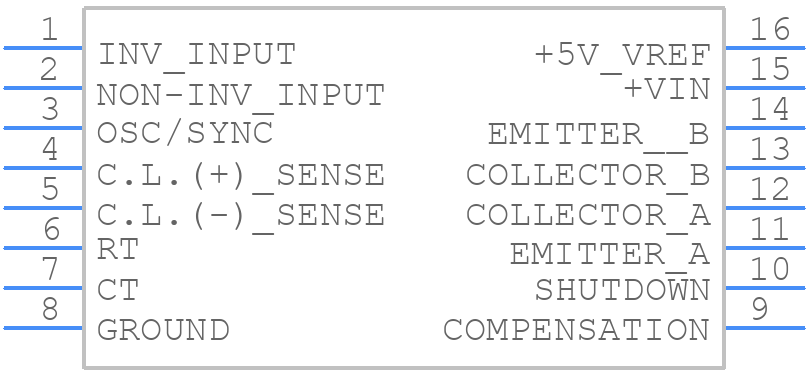

Use the download button to access the UC3524ANG4 schematic symbol, PCB footprint, and 3D model.
