The UC3524D is a high-frequency switching regulator, and proper PCB layout is crucial for its operation. TI recommends a 4-layer PCB with a solid ground plane, and the use of vias to connect the top and bottom layers. The input and output capacitors should be placed close to the IC, and the switching node should be kept as short as possible. A good layout will help reduce EMI and improve the regulator's performance.
The minimum input voltage for UC3524D is determined by the voltage drop across the internal switch and the output voltage. A general rule of thumb is to ensure that the input voltage is at least 2V higher than the output voltage. The maximum input voltage is limited by the IC's absolute maximum rating, which is 40V. However, it's recommended to operate the IC at a maximum input voltage of 30V to ensure reliable operation.
The soft-start pin (SS) on UC3524D is used to control the output voltage rise time during startup. By connecting a capacitor from the SS pin to ground, the output voltage will rise slowly, reducing the inrush current and preventing voltage overshoots. This is particularly useful in applications where the output capacitor is large or the input voltage is high.
The UC3524D requires a compensation network to ensure stability. A typical compensation network consists of a resistor and capacitor connected in series from the output to the compensation pin (COMP). The values of the resistor and capacitor depend on the output voltage, output capacitor, and switching frequency. TI provides a compensation calculator tool to help designers determine the optimal values for their specific application.
The maximum output current capability of UC3524D depends on the input voltage, output voltage, and switching frequency. The IC can deliver up to 5A of output current, but this is limited by the internal switch resistance and the thermal dissipation of the package. In general, it's recommended to derate the output current by 20-30% to ensure reliable operation and prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3524D Overview

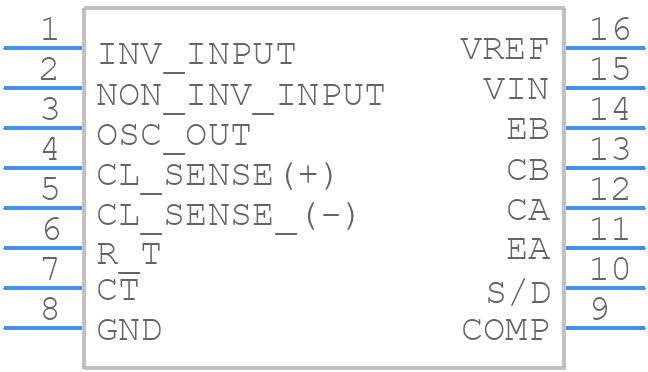

Use the download button to access the UC3524D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC352,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
