A good PCB layout for the UC3524N involves keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, use a compensation network (Rc and Cc) to stabilize the feedback loop, and ensure the output voltage is within the specified range.
The UC3524N can deliver up to 1.5A of output current, but this is dependent on the input voltage, output voltage, and thermal considerations. It's recommended to derate the output current based on the specific application requirements.
The UC3524N is rated for operation up to 125°C, but it's recommended to derate the output current and ensure proper thermal management to prevent overheating. Additionally, consider using a heat sink or thermal interface material to improve heat dissipation.
To troubleshoot issues with the UC3524N, use an oscilloscope to monitor the output voltage and current waveforms. Check for signs of oscillation, such as ringing or high-frequency noise, and verify that the input voltage and output voltage are within the specified ranges. Also, check the PCB layout and component values to ensure they match the recommended values in the datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3524N Overview

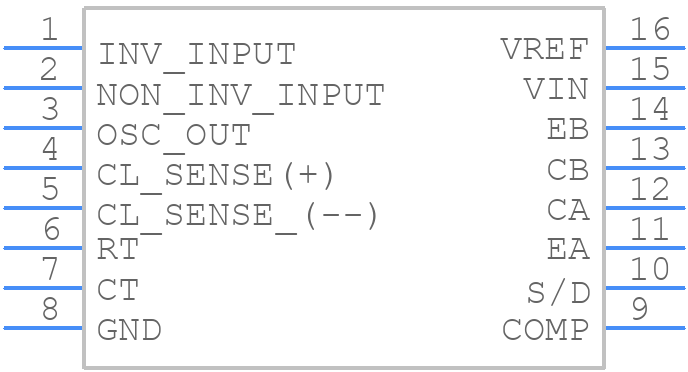

Use the download button to access the UC3524N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC352,
or try a keyword search, such as Switching Regulator or Controllers
