Texas Instruments provides a recommended PCB layout in the application note SLUA121, which includes guidelines for component placement, trace routing, and grounding to minimize EMI and ensure reliable operation.
The selection of the transformer depends on the specific application requirements, such as output voltage, current, and power level. Key parameters to consider include the transformer's turns ratio, inductance, and core material. Texas Instruments provides a transformer selection guide in the application note SLUA122.
The maximum junction temperature of the UC3526ADWTRG4 is 150°C. To ensure that the junction temperature does not exceed this value, designers should consider the thermal resistance of the package, the power dissipation of the device, and the ambient temperature of the operating environment. A thermal analysis should be performed to ensure that the device operates within the recommended temperature range.
The UC3526ADWTRG4 has a built-in overcurrent protection feature that can be implemented using an external resistor and capacitor. The recommended settings for the overcurrent threshold and timeout depend on the specific application requirements and can be found in the datasheet and application notes. A general guideline is to set the overcurrent threshold to 1.5 to 2 times the maximum expected output current, and the timeout to 10 to 20 ms.
The recommended input capacitor value and type for the UC3526ADWTRG4 depend on the specific application requirements, such as the input voltage, output voltage, and output current. A general guideline is to use a low-ESR ceramic capacitor with a value of 10 to 22 μF. The input capacitor affects the device's performance by reducing the input voltage ripple and ensuring stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3526ADWTRG4 Overview

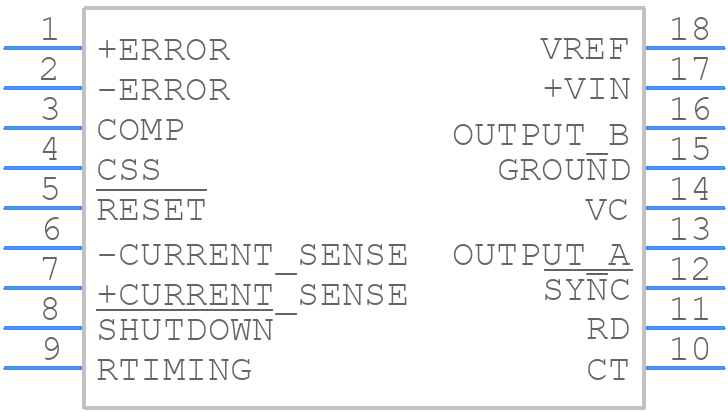

Use the download button to access the UC3526ADWTRG4 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like UC352,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
