The UC3526DWTR is a high-frequency switching regulator, and as such, it requires careful PCB design and layout to minimize noise and ensure reliable operation. TI recommends using a 4-layer PCB with a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, the layout should be designed to minimize loop areas and reduce parasitic inductance.
The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and output current. TI recommends using an inductor with a high saturation current rating, low DC resistance, and a high self-resonant frequency. The inductor value should be chosen to ensure that the peak inductor current is within the recommended range.
The maximum junction temperature for the UC3526DWTR is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to ensure a long lifespan.
While the UC3526DWTR can operate up to 150°C, it's not recommended to use it in high-temperature environments without proper thermal management. The device's performance and reliability may be affected at high temperatures, and it may require additional cooling measures such as heat sinks or fans.
To troubleshoot issues with the UC3526DWTR, start by checking the PCB layout and design for any errors or omissions. Verify that the input and output capacitors are properly selected and placed, and that the inductor is suitable for the application. Use an oscilloscope to measure the voltage and current waveforms, and check for any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3526DWTR Overview

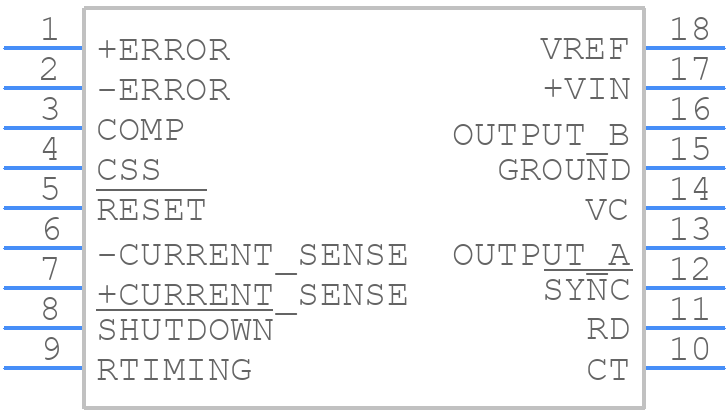

Use the download button to access the UC3526DWTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC352,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
