The UC3526NG4 is a high-frequency switching regulator, and proper PCB layout is crucial for its operation. TI recommends a 4-layer PCB with a solid ground plane, and the use of vias to connect the top and bottom layers. The input and output capacitors should be placed close to the IC, and the feedback network should be routed away from the switching node. A detailed layout guide can be found in the TI application note SLUA121.
The UC3526NG4 requires a type-III compensation network to ensure stability. The compensation components can be calculated using the equations provided in the datasheet, or by using TI's online compensation tool. The tool takes into account the input and output voltage, output current, and other parameters to provide a recommended compensation network.
The UC3526NG4 has a maximum output current capability of 2A, but this can be limited by the thermal performance of the IC and the PCB. The maximum output current should be derated based on the ambient temperature and the thermal resistance of the IC and PCB. A detailed thermal analysis should be performed to ensure the IC operates within its safe operating area.
Yes, the UC3526NG4 can be used in a synchronous rectification configuration to improve efficiency. However, this requires additional external components, including a synchronous rectifier FET and a Schottky diode. The UC3526NG4's internal switch can be used as the main switch, and the synchronous rectifier FET can be used to reduce the rectifier losses.
The UC3526NG4 has a maximum input voltage rating of 30V, but it can be protected from input voltage transients and surges using external components. A TVS diode can be used to clamp the input voltage, and a series resistor can be used to limit the input current. Additionally, a fuse can be used to protect the IC from overcurrent conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3526NG4 Overview

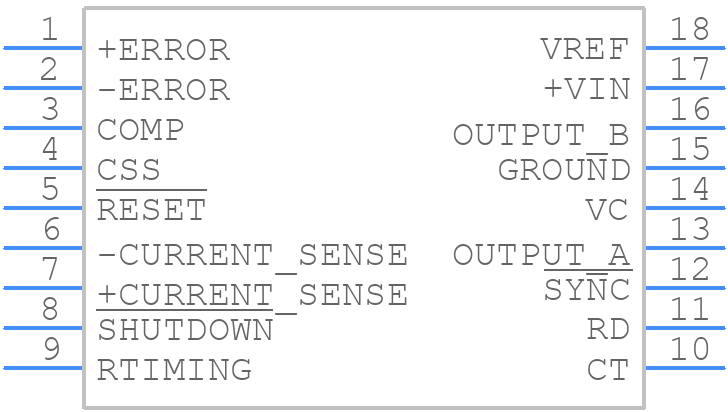

Use the download button to access the UC3526NG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC352,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
