UC3610DWTR - Texas Instruments

Description: Diode Rectifier Bridge Dual 50V 1A 16-Pin SOIC T/R

Download UC3610DWTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

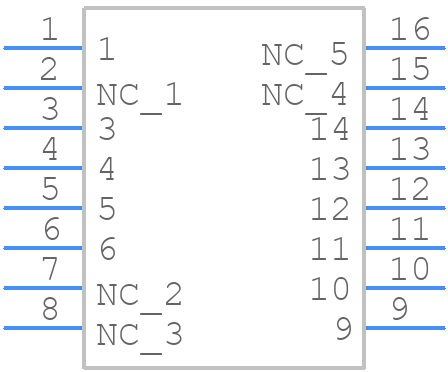

UC3610DWTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UC3610DWTR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016A
click to zoom
3D Models
UC3610DWTR - Texas Instruments - 3D model - Small Outline Packages - DW0016A
click to zoom

UC3610DWTR Details

  • Manufacturer Part Number:

    UC3610DWTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOD

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Configuration:

    COMPLEX

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.3 V

  • JEDEC-95 Code:

    MS-013AA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    2

  • Number of Elements:

    8

  • Number of Phases:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Dissipation-Max:

    1 W

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    50 V

  • Reverse Current-Max:

    100 µA

  • Reverse Recovery Time-Max:

    0.015 µs

  • Reverse Test Voltage:

    40 V

  • Surface Mount:

    YES

  • Technology:

    SCHOTTKY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

UC3610DWTR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for component placement, thermal management, and routing to minimize noise and ensure reliable operation.
  • The input capacitor selection depends on the input voltage, output voltage, and desired ripple current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value between 10uF to 100uF. Consult the application note SLUA271 for more detailed guidance.
  • The UC3610DWTR is rated for operation up to 85°C ambient temperature, but it's recommended to derate the output power and ensure proper thermal management to maintain reliability and prevent overheating.
  • The UC3610DWTR has a built-in OVP feature that can be enabled by connecting a resistor divider network between the input voltage and the OVP pin. The application note SLUA271 provides a detailed example of how to implement OVP and calculate the required resistor values.
  • The output capacitor value and type depend on the output voltage, output current, and desired ripple voltage. A general guideline is to choose a low-ESR capacitor with a value between 10uF to 100uF, and a voltage rating of at least 1.5 times the output voltage. Consult the application note SLUA271 for more detailed guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UC3610DWTR Overview

Use the download button to access the UC3610DWTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC361, or try a keyword search, such as Bridge Rectifier Diodes

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
