The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements. A larger capacitor value can help reduce input voltage ripple and improve overall system stability.
To ensure the UC3705N operates within its SOA, monitor the input voltage, output current, and junction temperature. Ensure the input voltage is within the recommended range (15V to 40V), output current is within the maximum rating (5A), and junction temperature is below 125°C.
The EN pin is used to enable or disable the UC3705N. When the EN pin is high (above 2.5V), the device is enabled, and when it's low (below 0.8V), the device is disabled. This pin can be used to implement power sequencing or to shut down the device when not in use.
The output voltage of the UC3705N is determined by the resistor divider network connected to the FB (feedback) pin. The output voltage can be calculated using the formula: Vout = 2.5V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
The UC3705N can deliver up to 5A of output current. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3705N Overview

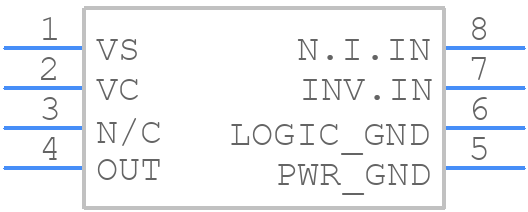

Use the download button to access the UC3705N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC370,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
