Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. TI recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value of 10-22uF for the input capacitor and 10-47uF for the output capacitor.
The UC3708DWTR is rated for operation from -40°C to 85°C, but the maximum ambient temperature range may be limited by the specific application and the thermal management system used. It's recommended to consult the thermal design guidelines in the datasheet and application notes to ensure reliable operation.
Yes, the UC3708DWTR is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, it's recommended to consult the specific requirements of the application and the relevant industry standards to ensure compliance.
TI provides a troubleshooting guide in the application note SLUA272, which covers common issues and their solutions, including oscillation, instability, and overvoltage protection. It's also recommended to consult the datasheet and application notes for specific guidance on design and layout considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3708DWTR Overview

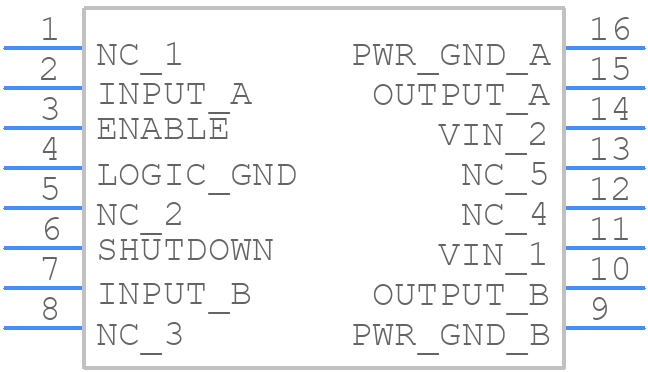

Use the download button to access the UC3708DWTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC370,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
