UC3708NE - Texas Instruments

Description: Non-Inverting High Speed Power Drivers

Download UC3708NE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

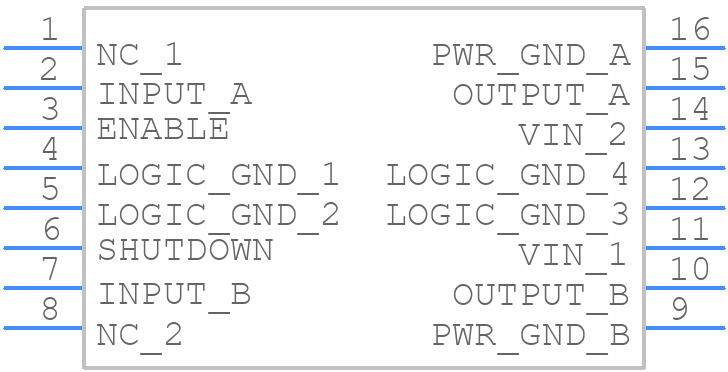

Symbol
UC3708NE - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UC3708NE - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 16 pdip n
click to zoom
3D Models
UC3708NE - Texas Instruments - 3D model - Dual-In-Line Packages - 16 pdip n
click to zoom

UC3708NE Details

  • Manufacturer Part Number:

    UC3708NE

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e4

  • Length:

    19.305 mm

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Current-Max:

    3 A

  • Output Peak Current Limit-Nom:

    3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    26 mA

  • Supply Voltage-Max:

    35 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    20 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.055 µs

  • Turn-on Time:

    0.075 µs

  • Width:

    7.62 mm

UC3708NE Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke and a shielded inductor to reduce EMI.
  • The inductor value depends on the input voltage, output voltage, and output current. A general rule of thumb is to choose an inductor with a value between 10uH to 22uH. TI also provides an inductor selection guide in their application notes.
  • The UC3708NE can operate in an ambient temperature range of -40°C to 85°C. However, the device's junction temperature should not exceed 150°C.
  • Yes, the UC3708NE is qualified for automotive and industrial applications. However, it's recommended to consult with TI's quality and reliability team to ensure that the device meets the specific requirements of your application.
  • TI recommends using an oscilloscope to measure the input and output waveforms, and to check for any signs of oscillation or instability. Additionally, it's recommended to consult the application notes and design guides provided by TI for troubleshooting tips and guidelines.
