- Part Number UC3824DWTR
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DW (R-PDSO-G16)
- Released Date Dec 4, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
UC3824DWTR Details
-
Manufacturer Part Number:
UC3824DWTR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Additional Feature:
CURRENT MODE OPERATION ALSO POSSIBLE
-
Analog IC - Other Type:
SWITCHING CONTROLLER
UC3824DWTR Frequently Asked Questions (FAQs)
-
Texas Instruments recommends a compact layout with the controller, power FETs, and output filter components placed close together. The datasheet provides a suggested layout diagram, and TI also offers a layout guide application note (SLUA121) that provides more detailed guidance.
-
The UC3824DWTR datasheet provides a component selection guide, and TI also offers a power supply design tool (Webench) that can help engineers select the right components based on their specific design requirements.
-
The UC3824DWTR has an operating temperature range of -40°C to 125°C. At higher temperatures, the device's performance may be affected, including reduced switching frequency and increased power consumption. Engineers should ensure that their design takes into account the thermal characteristics of the device and the overall system.
-
The UC3824DWTR has built-in OVP and UVP circuits, but engineers may need to add external components to customize the protection thresholds and response times. TI provides application notes and design examples that demonstrate how to implement OVP and UVP with the UC3824DWTR.
-
To ensure EMC, engineers should follow good layout practices, use shielding and filtering, and minimize radiated emissions. TI provides guidance on EMC considerations in the UC3824DWTR datasheet and in application notes such as SLUA143.
Trust Checks
Community Provided
System Verified
Community Approved
UC3824DWTR Overview

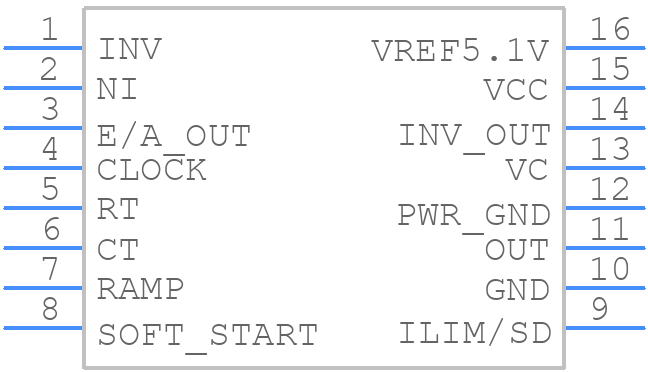

Use the download button to access the UC3824DWTR schematic symbol, PCB footprint, and 3D model.
