The UC3827N-1 is a high-frequency switching regulator, and as such, it requires careful PCB design and layout to minimize noise and ensure reliable operation. TI provides a recommended layout and PCB design guide in the application note SLUA121, which includes guidelines for component placement, trace routing, and thermal management.
The selection of the inductor depends on several factors, including the input voltage, output voltage, output current, and switching frequency. TI provides a detailed inductor selection guide in the application note SLUA143, which includes a step-by-step procedure for selecting the right inductor for your design.
The maximum junction temperature of the UC3827N-1 is 150°C. To ensure the device stays within the safe operating range, it's essential to provide adequate heat sinking and thermal management. TI recommends using a thermal pad or heat sink, and ensuring good airflow around the device. The thermal resistance of the device can be calculated using the thermal resistance values provided in the datasheet.
TI provides a comprehensive troubleshooting guide in the application note SLUA144, which covers common issues and their solutions. The guide includes a step-by-step procedure for identifying and resolving issues such as oscillations, instability, and output voltage errors.
Yes, the UC3827N-1 is qualified for use in high-reliability and automotive applications. TI provides a range of qualifications and certifications, including AEC-Q100, IATF 16949, and ISO 9001. The device is also designed to meet the requirements of various industry standards, including ISO 26262 and IEC 61508.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UC3827N-1 Overview

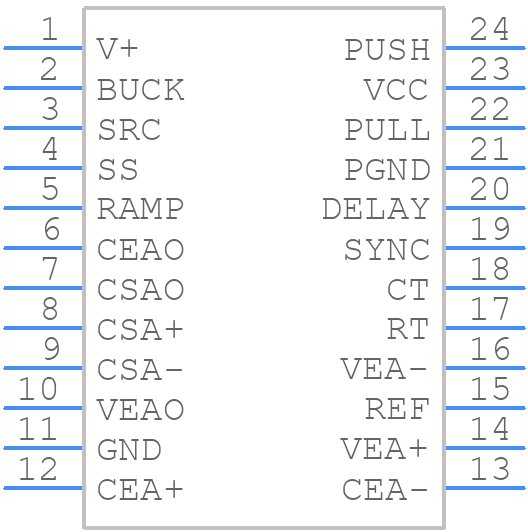

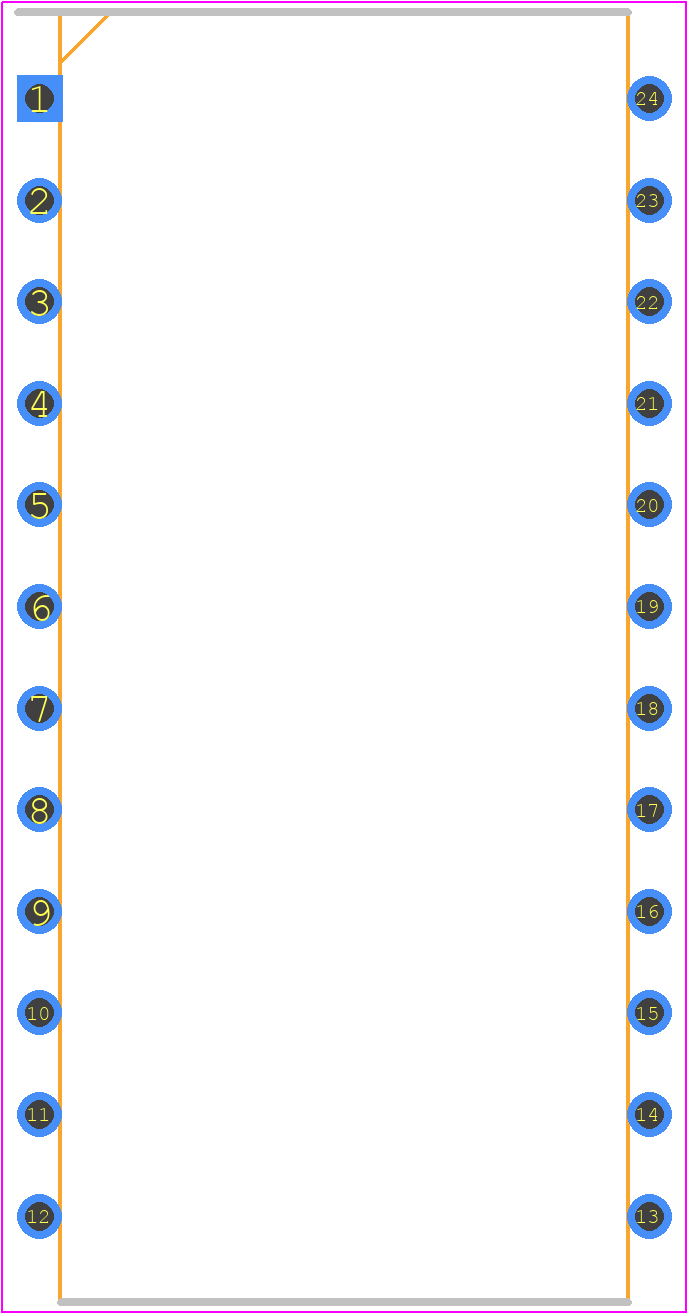

Use the download button to access the UC3827N-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC382,
or try a keyword search, such as Switching Regulator or Controllers
