The UC3843ADG4 is a high-frequency switching regulator, and proper PCB layout is crucial for its operation. TI recommends a 4-layer PCB with a solid ground plane, and the use of vias to connect the top and bottom layers. The input and output capacitors should be placed close to the IC, and the feedback network should be routed away from the switching node. Additionally, a shielded cable or a ferrite bead should be used to connect the feedback pin to the output voltage.
The minimum input voltage for UC3843ADG4 is determined by the voltage drop across the internal regulator and the minimum voltage required by the IC's internal circuits. Typically, it is around 8-10V. The maximum input voltage is limited by the IC's absolute maximum rating, which is 30V. However, it is recommended to operate the IC at a maximum input voltage of 25V to ensure reliable operation.
The bootstrap capacitor (CBOOT) is used to generate the gate drive voltage for the external power MOSFET. It is charged through the internal diode (D1) when the MOSFET is off, and discharges through the MOSFET's gate-source capacitance when the MOSFET is on. The bootstrap capacitor ensures that the MOSFET is fully turned on, reducing switching losses and improving efficiency.
The selection of external components depends on the specific application requirements, such as output voltage, output current, and switching frequency. TI provides a detailed application note (SLUA121) that provides guidelines for selecting the inductor, output capacitor, and other components. Additionally, TI's WEBENCH online design tool can be used to simulate and optimize the design.
Common failure modes of UC3843ADG4 include overvoltage, undervoltage, overcurrent, and overheating. These can be prevented by ensuring proper input voltage regulation, using a suitable input capacitor, and implementing overcurrent protection. Additionally, the IC should be operated within its recommended operating temperature range, and a suitable heat sink should be used if necessary.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3843ADG4 Overview

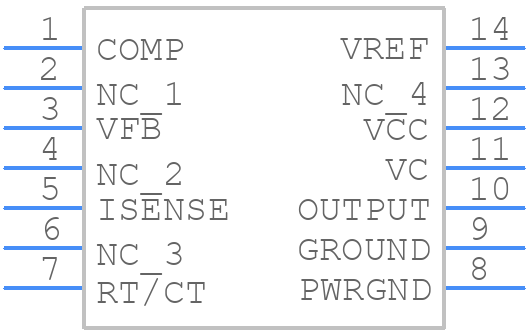

Use the download button to access the UC3843ADG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC384,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
