The UC3843D8TRG4 is a high-frequency switching regulator, and as such, it requires careful PCB design and layout to minimize noise, EMI, and parasitic inductance. TI recommends using a 4-layer PCB with a solid ground plane, separating the high-current and low-current paths, and using short, wide traces for the power lines. Additionally, it's essential to place the input and output capacitors close to the IC and use a common-mode choke to reduce EMI.
The choice of external components depends on the specific application requirements, such as output voltage, current, and frequency. TI provides a detailed application note (SLUA143) that includes a component selection guide and design equations for the transformer, inductor, and capacitors. Additionally, online tools and simulation software, such as TI's WEBENCH Power Designer, can help engineers select the optimal components for their design.
The UC3843D8TRG4 has a maximum junction temperature of 150°C, and it's essential to ensure that the device operates within a safe temperature range to prevent thermal shutdown or damage. TI recommends using a heat sink or thermal pad to dissipate heat, and ensuring good airflow around the device. Additionally, engineers should consider the thermal resistance of the PCB and the surrounding components, and use thermal simulation tools to predict the device's temperature under various operating conditions.
Troubleshooting the UC3843D8TRG4 requires a systematic approach, starting with a review of the circuit design and component selection. TI recommends checking the input and output voltages, current waveforms, and frequency of operation using an oscilloscope. Engineers should also verify that the device is properly biased, and that the feedback loop is stable and properly compensated. TI's application notes and technical support resources provide detailed troubleshooting guides and FAQs to help engineers identify and resolve common issues.
The UC3843D8TRG4 is a high-frequency switching regulator that can generate electromagnetic interference (EMI). To ensure compliance with regulatory standards, such as CISPR 22 and FCC Part 15, engineers should follow TI's guidelines for EMI reduction, including using a common-mode choke, shielding the circuit, and minimizing loop areas. Additionally, engineers should consider the PCB layout, component selection, and filtering to reduce EMI emissions and ensure immunity to external interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3843D8TRG4 Overview

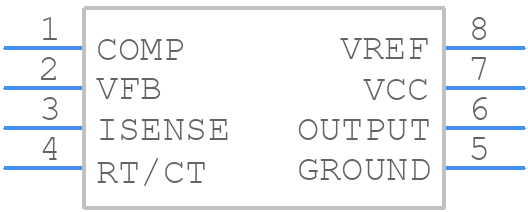

Use the download button to access the UC3843D8TRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC384,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
