UC3844BN - STMicroelectronics

Description: UC3844BN, PWM Current Mode Controller, 1 A Boost, Flyback, 500 kHz 8-Pin PDIP

Download UC3844BN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

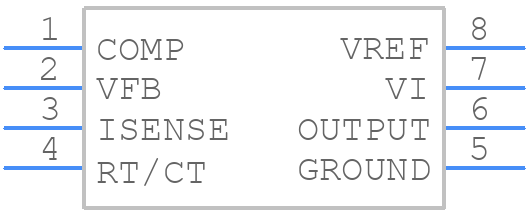

UC3844BN - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
UC3844BN - STMicroelectronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - Minidip
click to zoom
3D Models
UC3844BN - STMicroelectronics - 3D model - Dual-In-Line Packages - Minidip
click to zoom

UC3844BN Details

  • Manufacturer Part Number:

    UC3844BN

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    MINI, DIP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    11.5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

UC3844BN Frequently Asked Questions (FAQs)

  • The maximum operating frequency of UC3844BN is 500 kHz. However, it's recommended to operate it at a frequency between 100 kHz to 400 kHz for optimal performance.
  • The minimum input voltage is typically 8.5V, and the maximum input voltage is 35V. However, it's recommended to operate it within 12V to 25V for optimal performance. You can calculate the minimum and maximum input voltage based on your specific application requirements.
  • The soft-start pin (SS) is used to control the output voltage ramp-up time during startup. It helps to reduce the inrush current and prevents voltage overshoots. You can connect a capacitor between the SS pin and ground to set the soft-start time.
  • The values of Rt and Ct determine the oscillator frequency. A higher Rt value increases the frequency, while a higher Ct value decreases the frequency. A good starting point is Rt = 10 kΩ and Ct = 3.3 nF. You can adjust these values based on your specific application requirements.
