The maximum voltage rating for the UC3847N is 30V, but it's recommended to operate it within 15V to ensure reliable operation and to prevent damage to the internal circuitry.
The resistor values for the oscillator circuit (Rt and Ct) depend on the desired switching frequency. A good starting point is to use the values recommended in the datasheet (Rt = 10kΩ, Ct = 3.3nF) and then adjust them based on the specific application requirements.
The soft-start pin (SS) is used to slowly ramp up the output voltage during startup, reducing inrush current and electromagnetic interference (EMI). To use it, connect a capacitor (typically 10nF to 100nF) from the SS pin to ground, and a resistor (typically 1kΩ to 10kΩ) from the SS pin to the output voltage.
To ensure stable operation, make sure to decouple the power supply pins (VCC and GND) with a 10uF to 100uF capacitor, and use a low-ESR capacitor for the output filter. Also, ensure that the layout is well-designed, with short traces and minimal parasitic inductance.
The maximum output current capability of the UC3847N is dependent on the specific application and the design of the output stage. However, as a general guideline, the UC3847N can handle output currents up to 1A, but it's recommended to derate the current based on the ambient temperature and the thermal design of the system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3847N Overview

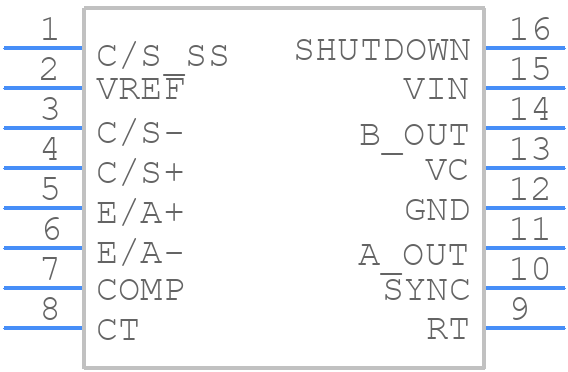

Use the download button to access the UC3847N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC384,
or try a keyword search, such as Switching Regulator or Controllers
