The UC3851N is a high-frequency switching regulator, and as such, it requires careful PCB design and layout to minimize noise and ensure reliable operation. TI recommends using a 4-layer PCB with a solid ground plane, and placing the input and output capacitors close to the IC. Additionally, the layout should be designed to minimize loop areas and reduce electromagnetic interference (EMI).
The selection of the inductor depends on the specific application requirements, such as the input voltage, output voltage, and output current. TI recommends using an inductor with a high saturation current rating, low DC resistance, and a high self-resonant frequency. The inductor value should be chosen to ensure that the peak inductor current is within the recommended range. TI provides an inductor selection guide in the UC3851N datasheet.
The maximum junction temperature of the UC3851N is 150°C. To ensure that the junction temperature does not exceed this limit, the designer should consider the thermal resistance of the IC, the PCB, and the heat sink (if used). The thermal resistance can be calculated using the thermal resistance formula provided in the datasheet. Additionally, the designer should ensure that the IC is properly mounted and soldered to the PCB, and that the heat sink is properly attached to the IC.
Common issues with the UC3851N, such as oscillations or instability, can be caused by a variety of factors, including poor PCB design, incorrect component selection, or inadequate decoupling. To troubleshoot these issues, the designer should first verify that the PCB design and component selection meet the recommended guidelines. Next, the designer should check the input and output voltage waveforms using an oscilloscope to identify any anomalies. Finally, the designer should consult the UC3851N datasheet and application notes for troubleshooting guides and tips.
Yes, the UC3851N is suitable for use in high-reliability and automotive applications. TI provides a range of documentation and support for these applications, including AEC-Q100 qualification, PPAP (Production Part Approval Process) documentation, and automotive-grade packaging options. However, the designer should ensure that the UC3851N is used within its recommended operating conditions and that the design meets the specific requirements of the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3851N Overview

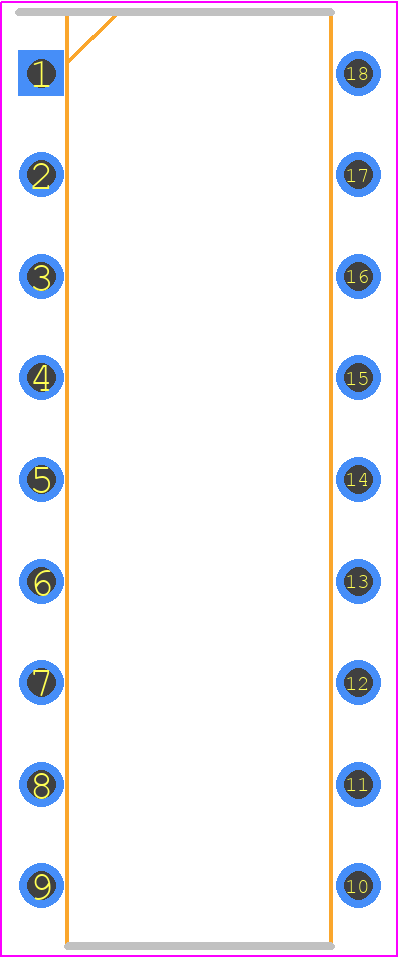

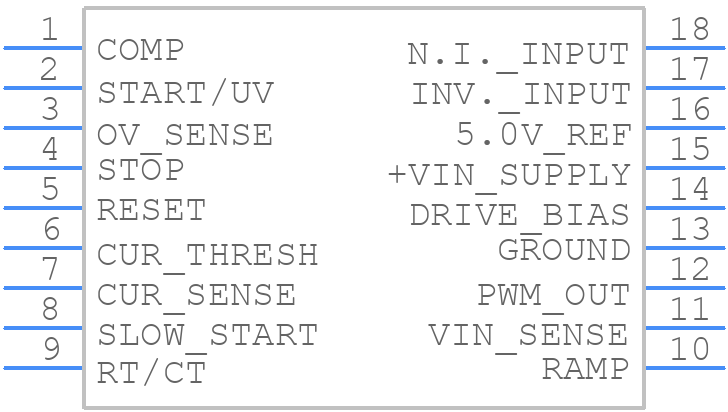

Use the download button to access the UC3851N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC385,
or try a keyword search, such as Switching Regulator or Controllers
