The UC3852NG4 is a high-frequency switching regulator, and as such, it requires careful PCB design and layout to ensure proper operation. TI recommends using a 4-layer PCB with a solid ground plane, and keeping the switching node (SW) and output voltage (VOUT) traces as short as possible. Additionally, decoupling capacitors should be placed close to the IC, and the input capacitor should be placed close to the input voltage source.
The selection of the inductor depends on the specific application requirements, such as the output voltage, output current, and switching frequency. TI recommends using an inductor with a low DC resistance (DCR) and a high saturation current rating. The inductor value should be chosen to ensure that the peak inductor current is within the recommended range. TI provides an inductor selection guide in the datasheet and application notes.
The maximum junction temperature (TJ) for the UC3852NG4 is 150°C. However, it's recommended to operate the device at a lower temperature to ensure reliability and to prevent thermal shutdown. The device has a built-in thermal shutdown feature that turns off the device when the junction temperature exceeds 170°C.
Yes, the UC3852NG4 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications, and it's also suitable for industrial and medical applications that require high reliability. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
Troubleshooting issues with the UC3852NG4 requires a systematic approach. First, ensure that the device is properly powered and that the input voltage is within the recommended range. Check the PCB layout and design to ensure that it meets the recommended guidelines. Use an oscilloscope to measure the switching node (SW) and output voltage (VOUT) waveforms to identify any signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guides and tips.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3852NG4 Overview

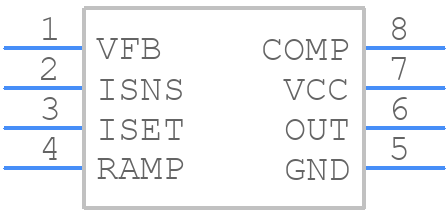

Use the download button to access the UC3852NG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC385,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
