The UC3853N is a high-frequency device, and proper layout and placement are crucial to minimize EMI and noise. TI recommends placing the device close to the input capacitors, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's essential to follow good PCB design practices, such as using a star-ground configuration and avoiding parallel tracks.
To ensure stability, it's essential to follow the recommended compensation network and component values. The UC3853N is a voltage-mode controller, and the compensation network should be designed to provide a stable closed-loop response. TI provides a compensation calculator tool to help with this process. Additionally, it's crucial to ensure the input and output capacitors are of high quality and meet the recommended specifications.
The UC3853N is capable of delivering high output currents, but the maximum current capability depends on the specific application and design. The device can handle peak currents up to 5A, but the average output current should be derated based on the thermal design and the maximum junction temperature. TI recommends following the thermal design guidelines and using the power dissipation calculator to determine the maximum output current capability for a specific design.
The UC3853N has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it's still essential to add external protection components, such as a voltage supervisor or a reset IC, to ensure the device is protected from voltage transients and faults. Additionally, TI recommends using a soft-start circuit to prevent inrush currents during startup.
The recommended input capacitor type is a low-ESR, high-frequency capacitor, such as a ceramic or film capacitor. The value depends on the specific application and design, but a general guideline is to use a capacitor with a value between 10uF to 100uF, with a voltage rating that meets or exceeds the maximum input voltage. TI recommends following the input capacitor selection guidelines in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3853N Overview

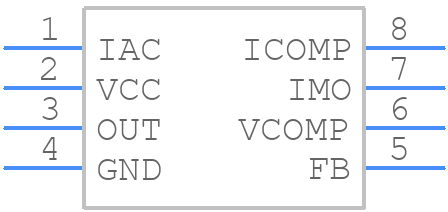

Use the download button to access the UC3853N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC385,
or try a keyword search, such as Switching Regulator or Controllers
