A good PCB layout for the UC3855BDWTR involves keeping the input and output stages separate, using a star-ground configuration, and placing the input filter components close to the IC. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
When selecting a transformer for the UC3855BDWTR, consider the output power, voltage, and current requirements. Choose a transformer with a suitable turns ratio, core material, and wire size to ensure efficient energy transfer and minimal losses.
The UC3855BDWTR has an operating temperature range of -40°C to 85°C. However, the maximum ambient temperature depends on the specific application and thermal design. Ensure proper thermal management to prevent overheating and ensure reliable operation.
While the UC3855BDWTR is designed for isolated topologies, it can be used in non-isolated configurations with proper design considerations. However, this may require additional components and careful layout to ensure safe operation and meet regulatory requirements.
To minimize standby power consumption, use a low-ESR input capacitor, optimize the transformer design, and consider using a low-power startup circuit. Additionally, ensure that the IC is properly biased and that the output voltage is within the recommended range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3855BDWTR Overview

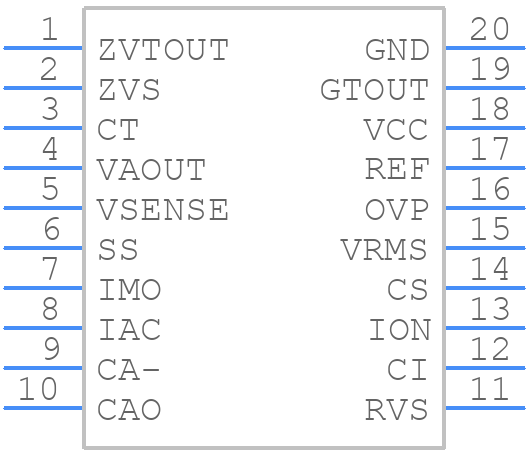

Use the download button to access the UC3855BDWTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC385,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
