The UC3856DWTR is a high-frequency switching converter, and proper layout and placement are crucial for its operation. TI recommends a 4-layer PCB with a solid ground plane, and placing the IC close to the input capacitors and inductors to minimize noise and EMI.
The inductor selection depends on the output current, switching frequency, and desired ripple current. TI recommends using an inductor with a high saturation current, low DCR, and a suitable core material. The datasheet provides a list of recommended inductors, but engineers can also use TI's inductor selection tool to find a suitable inductor.
The UC3856DWTR is rated for operation up to 85°C ambient temperature, but the maximum junction temperature is 150°C. Engineers should ensure proper thermal design and heat sinking to keep the junction temperature within the specified range.
The UC3856DWTR uses a voltage-mode control architecture, and the voltage feedback loop requires compensation to ensure stability. TI recommends using a type-III compensation network, and provides a compensation calculator tool to help engineers design the compensation network.
The UC3856DWTR requires a low-ESR input capacitor to filter the input voltage and reduce noise. TI recommends using a ceramic or film capacitor with a value of 10-22uF, depending on the input voltage and output current requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3856DWTR Overview

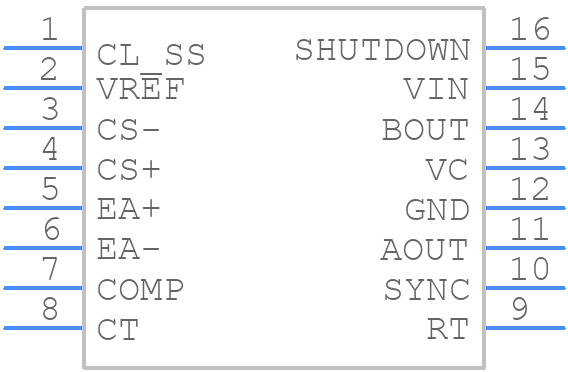

Use the download button to access the UC3856DWTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC385,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
