The UC3856NG4 is a high-frequency switching regulator, and as such, it requires careful PCB design and layout to ensure proper operation. TI recommends using a 4-layer PCB with a solid ground plane, and keeping the switching node (pins 3 and 4) as short as possible. Additionally, the input and output capacitors should be placed close to the IC, and the feedback network should be routed away from the switching node.
The selection of external components for the UC3856NG4 depends on the specific application requirements, such as output voltage, current, and switching frequency. TI provides a detailed component selection guide in the datasheet, which includes formulas and graphs to help designers choose the right components. Additionally, TI's WEBENCH online design tool can be used to simplify the component selection process.
The UC3856NG4 has an operating junction temperature range of -40°C to 125°C, and a storage temperature range of -65°C to 150°C. However, the maximum ambient temperature that the device can operate at depends on the specific application and the thermal design of the system. TI recommends using a thermal derating curve to determine the maximum ambient temperature for a given application.
Troubleshooting issues with the UC3856NG4 requires a systematic approach. First, ensure that the PCB design and layout are correct, and that the external components are properly selected and installed. Next, check the input and output voltages, and the switching frequency, to ensure that they are within the specified ranges. If the issue persists, use an oscilloscope to examine the waveforms and identify any anomalies. TI also provides a troubleshooting guide in the datasheet, which includes common issues and their solutions.
Yes, the UC3856NG4 is compatible with lead-free soldering processes. TI uses a lead-free finish on the device, and it is designed to meet the requirements of the RoHS (Restriction of Hazardous Substances) directive. However, it is still important to follow proper soldering techniques and temperature profiles to ensure reliable assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC3856NG4 Overview

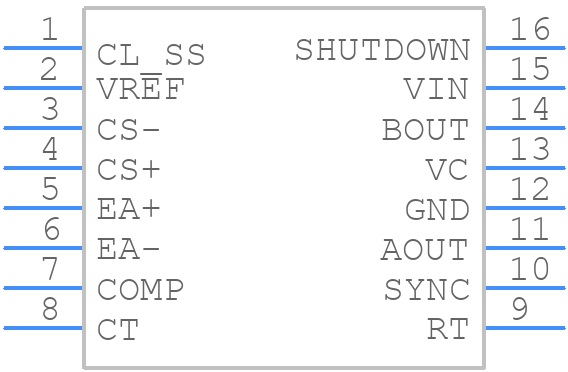

Use the download button to access the UC3856NG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC385,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
