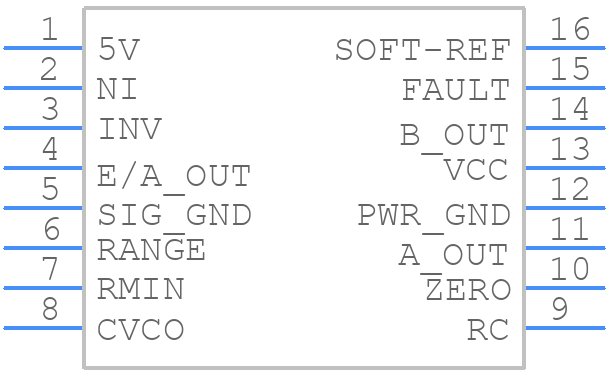

UC3867N - Texas Instruments

UC3867N Details

• Manufacturer Part Number:

  UC3867N

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DIP

• Pin Count:

  16

• Country Of Origin:

  Mexico

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Analog IC - Other Type:

  SWITCHING CONTROLLER

• Control Mode:

  VOLTAGE-MODE

• Control Technique:

  RESONANT CONTROL

• Input Voltage-Max:

  20 V

• Input Voltage-Min:

  8 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e4

• Length:

  19.305 mm

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  70 °C

• Output Current-Max:

  1.5 A

• Output Voltage-Max:

  5.2 V

• Output Voltage-Min:

  4.8 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Supply Current-Max (Isup):

  32 mA

• Supply Voltage-Max (Vsup):

  22 V

• Supply Voltage-Nom (Vsup):

  12 V

• Surface Mount:

  NO

• Switcher Configuration:

  PUSH-PULL

• Switching Frequency-Max:

  500 kHz

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
